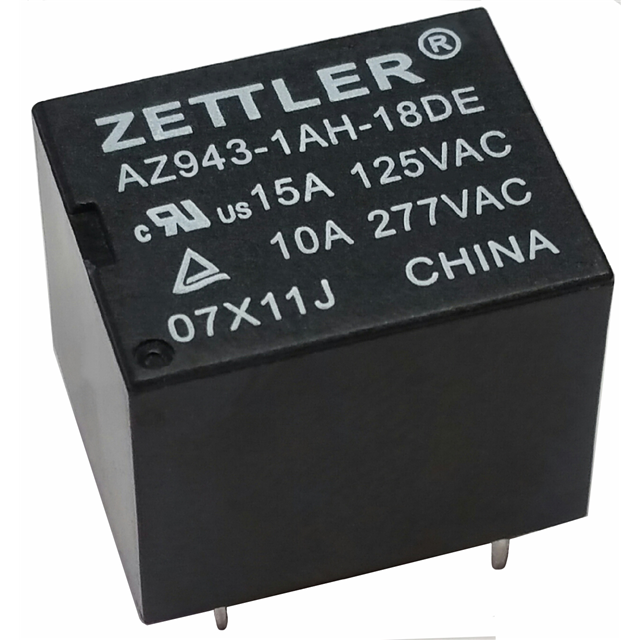

AZ943-1AH-12DE Real Image
Same model may have multiple batches, images only for reference.

AZ943-1AH-12DE

Part No AZ943-1AH-12DE
Manufacturer American Zettler, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 15A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
AZ943-1AH-12DE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr American Zettler
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 15 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 30 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 90°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 400 Ohms
Base Product Number AZ943
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names 3385-AZ943-1AH-12DE,2487-AZ943-1AH-12DE,2487-AZ943-1AH-12DE-ND
Standard Package 1,000
Win Source Part Number 1022637-AZ943-1AH-12DE
Ultra Librarian 3D Model Ultra Librarian AZ943-1AH-12DE CAD Model

Description

The AZ943-1AH-12DE relay from American Zettler is a general-purpose non-latching relay with a contact form of SPST-NO (1 Form A) and a contact rating of 15 A.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 15 A
  • Switching Voltage: 277VAC and 30VDC
  • Maximum Release Time: 5ms
  • Coil Voltage: 12VDC
  • Coil Resistance: 400Ω
  • Coil Current: 30mA
  • Sealed: Fully
  • Mounting Type: Through hole
  • Operating Temperature Range: -40°C to 90°C
