Same model may have multiple batches, images only for reference.

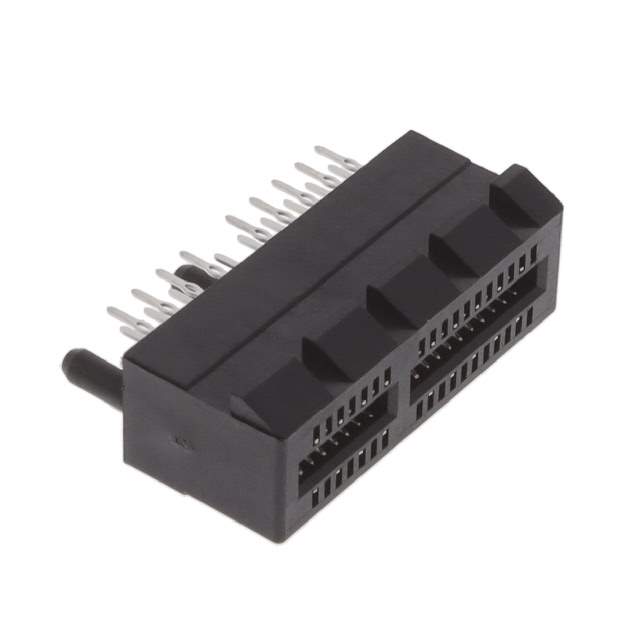

10039755-10110TLF Real Image
Same model may have multiple batches, images only for reference.

10039755-10110TLF

Part No 10039755-10110TLF
Manufacturer Amphenol FCI
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FEMALE 36POS 0.039
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Tray
Card Type PCI Express
Gender Female
Number of Positions 36
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting Style Through Hole
Termination Solder, Staggered
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 15.0μin (0.38μm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyamide (PA), Nylon, Glass Filled
Manufacturer Pack Quantity 126
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814331-10039755-10110TLF
Ultra Librarian 3D Model Ultra Librarian 10039755-10110TLF CAD Model

Description

{"ProductId":752615,"FormattedDescription":"

The Amphenol ICC (FCI) 814331-10039755-10110TLF is a female PCI Express card edge connector with a pitch of 1.00mm and 36 positions.

  • Pitch: 1.00mm
  • Positions: 36
  • Mounting Style: Through-Hole
  • Color: Black
  • Features: Board Guide, Locking Ramp
  • Contact Type: Cantilever
  • Contact Finish: Gold (15.0μin (0.38μm))
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Application: PCI Express Card
  • Temperature Range: -55°C to 85°C
  • Packaging: Tray
  • Supply and Demand Status: Limited
"}
