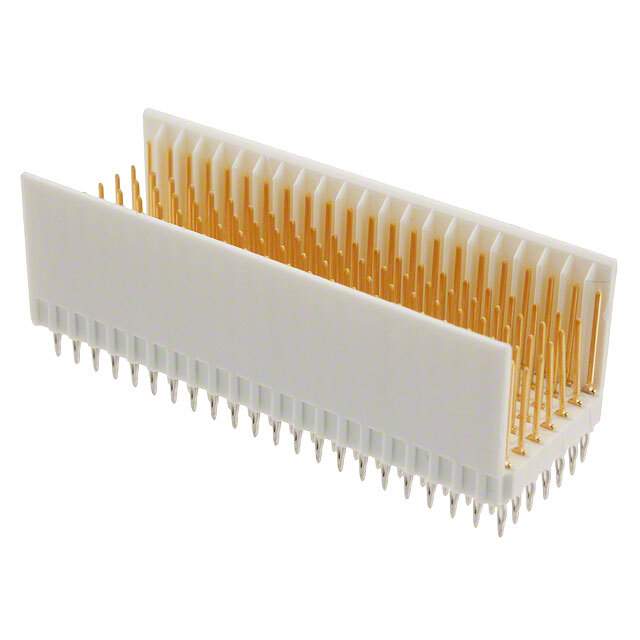

HM2P70PDE121N9LF Real Image
Same model may have multiple batches, images only for reference.

HM2P70PDE121N9LF

Part No HM2P70PDE121N9LF
Manufacturer Amphenol FCI
Catalog Backplane Connectors
Description CONN HEADER 110POS TYPE B VERT / Conn Hard Metric HDR 110 POS 2mm Press Fit ST Thru-Hole Millipacs® Tray
Datasheet
HM2P70PDE121N9LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Series Millipacs
Packaging Tray
Connector Type Header, Male Pins
Connector Style B 22
Number of Positions 154 (110 + 44 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5 + 2
Mounting Style Through Hole
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness Flash
Current Rating 1.5A
Voltage Rating 750Vrms
Operating Temperature Range -55°C ~ 125°C
Win Source Part Number 776056-HM2P70PDE121N9LF
Popularity Medium
Supply and Demand Status Limited
Family Name HM
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin India
Halogen Free Not Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian HM2P70PDE121N9LF CAD Model

Description

The Amphenol FCI Millipacs series connector is a male header pin with 154 positions, consisting of 110 signal pins and 44 ground pins.

  • Series: Millipacs
  • Connector Type: Male Header Pin
  • Positions: 154 (110 Signal Pins, 44 Ground Pins)
  • Pitch: 0.079 inches (2.00mm)
  • Voltage Rating: 750Vrms
  • Current Rating: 1.5A
  • Mounting Type: Through-Hole
  • Termination: Press-Fit
  • Family: HM
  • Connector Style: B 22
  • Contact Finish: Gold (Flash Thickness Not Specified)
  • Operating Temperature: -55°C to 125°C
  • Halogen-Free: No
  • Market Popularity: Medium
