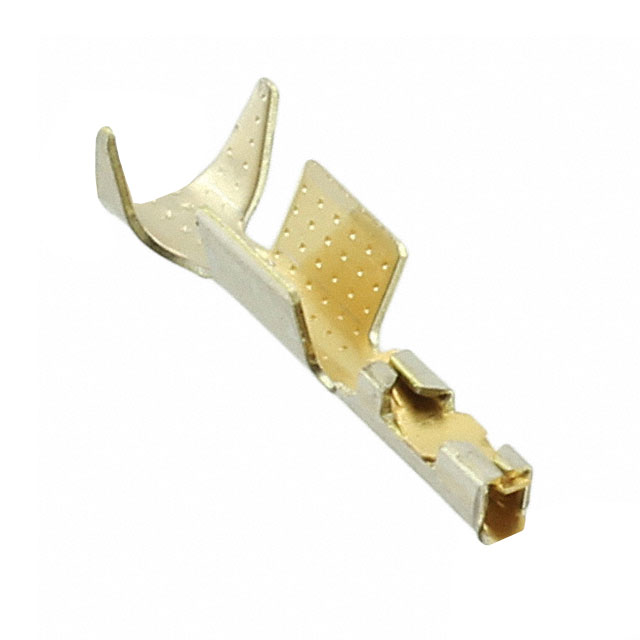

48241-000LF Amphenol FCI
Same model may have multiple batches, images only for reference.

48241-000LF

Part No 48241-000LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN SOCKET 18-20AWG CRIMP GOLD / Socket Contact Gold 18-20 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr Amphenol
Series Mini-PV™, Basics+
Package Cut Tape (CT)Bulk
Product Status Active
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-20 AWG
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 48241
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 420030-48241-000LF
Ultra Librarian 3D Model Ultra Librarian 48241-000LF CAD Model

Description

The 420030-48241-000LF is a rectangular connector contact manufactured by Amphenol.

  • Series: Mini-PV™ and Basics+
  • Contact Finish: Gold with a thickness of 15.0μin (0.38μm)
  • Wire Gauge: 18-20 AWG
  • Termination: Crimp
  • Contact Type: Socket
  • Package: Cut Tape (CT) Bulk
  • Standard Package: 10,000 pieces
  • REACH: Compliant
  • ECCN: EAR99
  • MSL Level: 1
