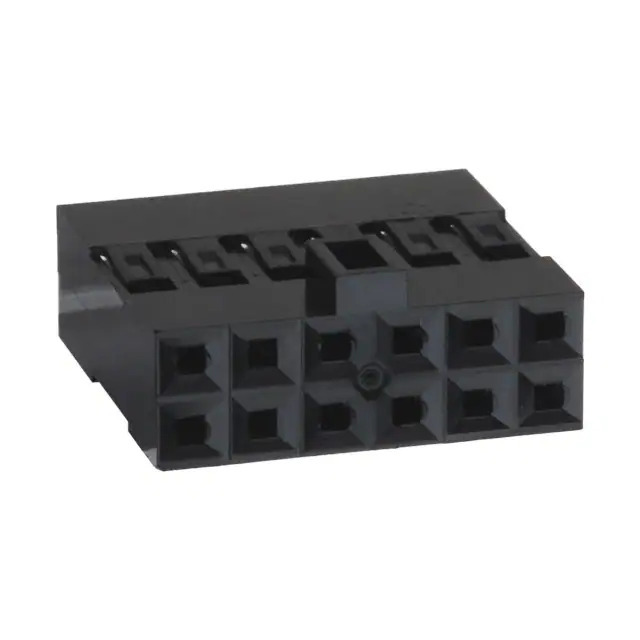

Same model may have multiple batches, images only for reference.

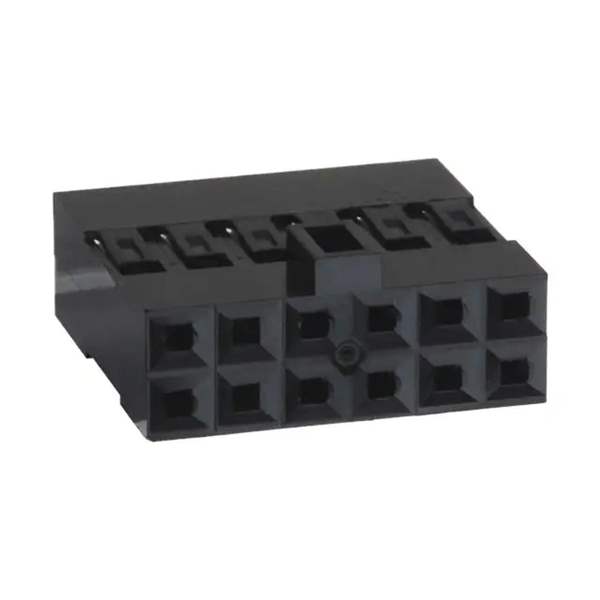

69176-012LF Amphenol
Same model may have multiple batches, images only for reference.

69176-012LF

Part No 69176-012LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT HSG 12POS 2.54MM / 12 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr Amphenol ICC (FCI)
Series Mini-PV™, Basics+
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 12
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Black
Features Polarizing Key
Temperature Range - Operating -40°C ~ 105°C
Note Contacts Not Included
Base Product Number 69176
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1377576-69176-012LF
Ultra Librarian 3D Model Ultra Librarian 69176-012LF CAD Model

Description

The Mini-PV™, Basics+ 69176 is a rectangular connector housing designed for reliable and secure connections and manufactured by Amphenol ICC (FCI).

  • Temperature Range: -40°C to 105°C
  • Package: Bulk
  • Polarizing Key: Yes
  • Mounting: Free-Hanging (In-Line)
  • Termination: Crimp
  • Positions: 12
  • Rows: 2
  • Flammability Rating: UL94 V-0
  • REACH Compliance: Unaffected
