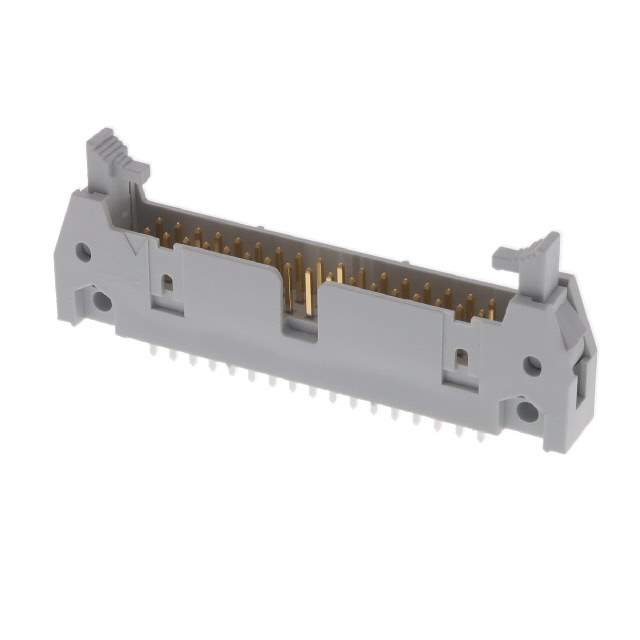

The 1226611-71918-234LF is a male pin header connector that belongs to the Quickie™ series.

• Series: Quickie™
• Positions Loaded: 34 (All)
• Rows: Two
• Features: Keying Slot, Mounting Flange, Latch Lock/Eject Hooks, Short Fastening Type
• Packaging: Tube
• Insulation Material: Thermoplastic, Glass-Filled
• Contact Material: Phosphor Bronze
• Contact Finish (Mating): Gold GXT™
• Contact Finish (Post): Tin
• Flammability Rating: UL94 V-0
• Insulation Color: Gray
• Shrouding: 4 Walls
• Pitch-Mating: 0.100" (2.54mm)
• Row Spacing-Mating: 0.100" (2.54mm)
• Contact Length-Mating: 0.228" (5.80mm)
• Contact Length-Post: 0.114" (2.90mm)
• Style: Board-to-Cable/Wire
• Voltage Rating: -
