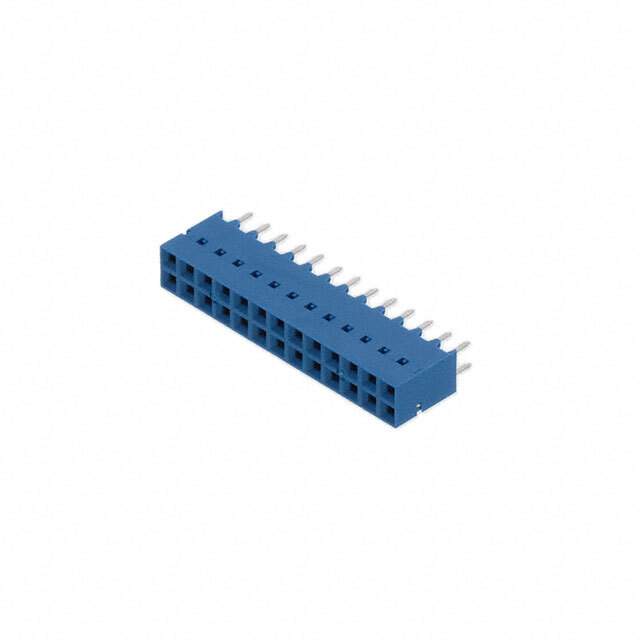

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Amphenol ICC (FCI)
Series Dubox™
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 26
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Blue
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.114" (2.90mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Applications Automotive, General Purpose, Industrial, Telecommunications
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 87606
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-87606-313LF,87606-313LF-ND,609-6005
Standard Package 17
Win Source Part Number 1029128-87606-313LF
Ultra Librarian 3D Model Ultra Librarian 87606-313LF CAD Model

Description

The Dubox™ series 26-position female socket receptacle connector from Amphenol ICC (FCI) is a board-to-board style connector with a pitch of 0.100 inches (2.54mm) and a row spacing of 0.100 inches (2.54mm).

  • Series: Dubox™
  • Positions: 26
  • Connector Type: female socket receptacle
  • Style: board-to-board
  • Pitch: 0.100 inches (2.54mm)
  • Row Spacing: 0.100 inches (2.54mm)
  • Contact Material: phosphor bronze
  • Mating Contact Finish Thickness: 30.0μin (0.76μm) gold
  • Post Contact Finish: tin
  • Post Contact Finish Thickness: 78.7μin (2.00μm)
  • Mounting: through-hole
  • Contact Length: 0.114 inches (2.90mm)
  • Flammability Rating: UL94 V-0
  • Applications: automotive, general purpose, industrial, and telecommunications
  • Insulation Height: 0.335 inches (8.51mm)
  • Package: tube
  • Cross-References: 6-534998-3, 76342-313LF, 71991-313LF, 1-215307-3, 87606-413LF, SSW-113-01-G-D
  • ECCN: EAR99
