Same model may have multiple batches, images only for reference.

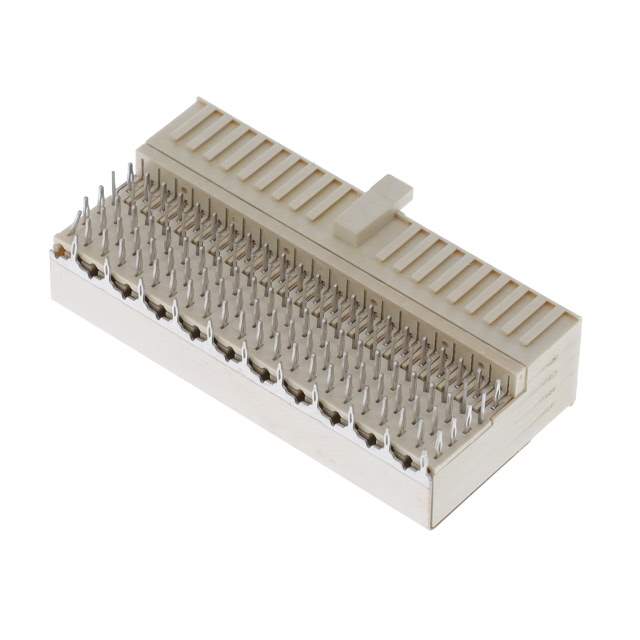

HM2R66PA5108N9LF Real Image
Same model may have multiple batches, images only for reference.

HM2R66PA5108N9LF

Part No HM2R66PA5108N9LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RECEPT 110POS 2MM PRESS-FIT / 110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Hard Metric, Standard
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Type Receptacle, Female Sockets
Connector Style AB 22
Number of Positions 110
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 750Vrms
Temperature Range - Operating -55°C ~ 125°C
Features Upper Shield
Base Product Number HM2R66
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-HM2R66PA5108N9LF,609-HM2R66PA5108N9LF,HM2R66PA5108N9LF-ND
Standard Package 36
Win Source Part Number 1333244-HM2R66PA5108N9LF
Ultra Librarian 3D Model Ultra Librarian HM2R66PA5108N9LF CAD Model

Description

The Amphenol ICC (FCI) 1333244-HM2R66PA5108N9LF is a 110-position, 5-row, press-fit receptacle connector with female sockets.

  • Features: Upper shield and AB 22 style
  • Voltage Rating: 750Vrms
  • Current Rating: 1.5A
  • RoHS Compliant: Yes
  • Operating Temperature: -55°C to 125°C
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Mounting: Board edge, through hole, and right angle
