Analog Devices Inc. AD7124-8BCPZ Overview

The AD7124-8BCPZ is a highly integrated, low noise, 24-bit analog-to-digital converter (ADC) produced by Analog Devices Inc., a leading company in the semiconductor industry. This precision ADC is designed for low bandwidth inputs and is ideal for a wide range of applications, including process control, instrumentation, and industrial automation.

Key Features

• Resolution: The device boasts a 24-bit sigma-delta (Σ-Δ) ADC, offering high-resolution measurements that are crucial for precision applications.
• Channel Count: It features 8 differential or 15 single-ended inputs, providing flexibility for various sensor types and configurations.
• Integrated Low Noise PGA: The product includes a programmable gain amplifier, which enhances the signal-to-noise ratio and allows for a wide range of input signals.
• On-Chip Reference: An internal 2.5V reference reduces the need for external components, simplifying design and saving board space.
• Low Power: Designed for power-sensitive applications, the AD7124-8BCPZ operates efficiently with a reduced power consumption.
• Filter Options: Multiple filter options are available to optimize the trade-off between settling time and 50/60 Hz rejection.
• Interface: The device supports SPI and I²C interfaces, ensuring easy integration with most microcontrollers and digital systems.

Applications

• Industrial Process Control
• Temperature Measurement with RTDs, Thermocouples
• Pressure Measurement
• Weigh Scales
• Medical and Healthcare Systems
• Instrumentation

Package and Quality

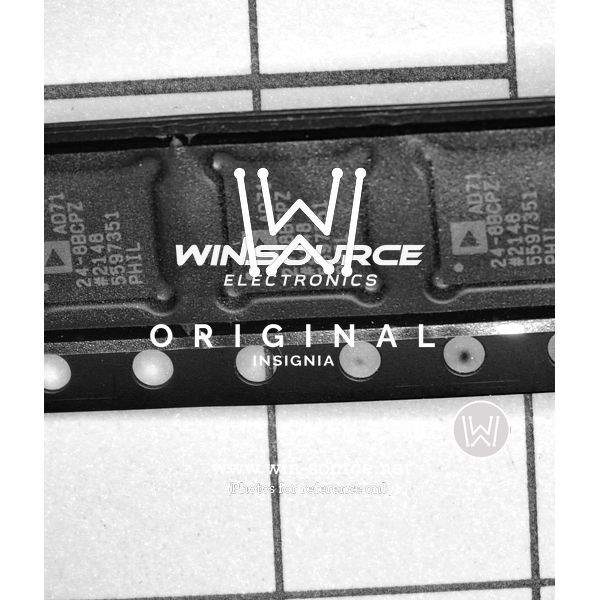

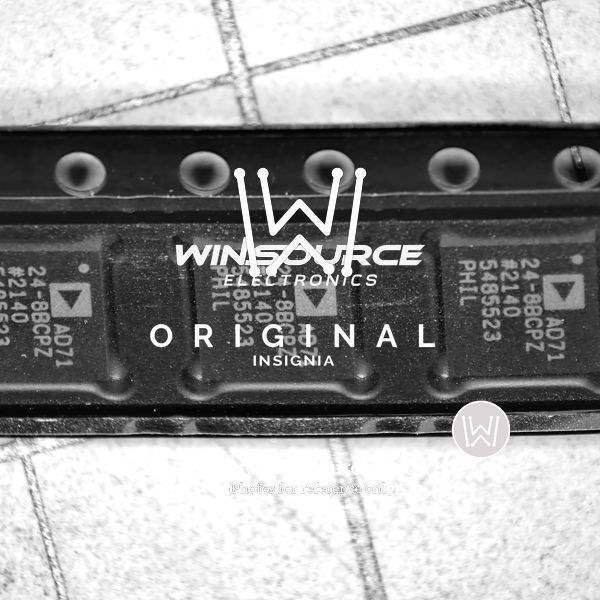

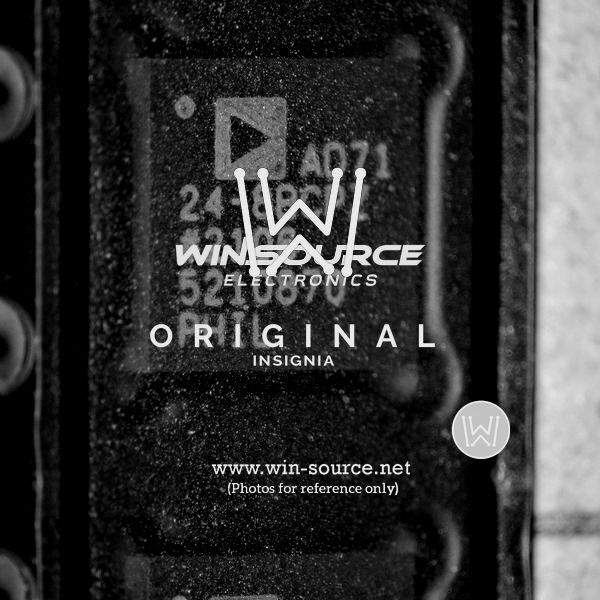

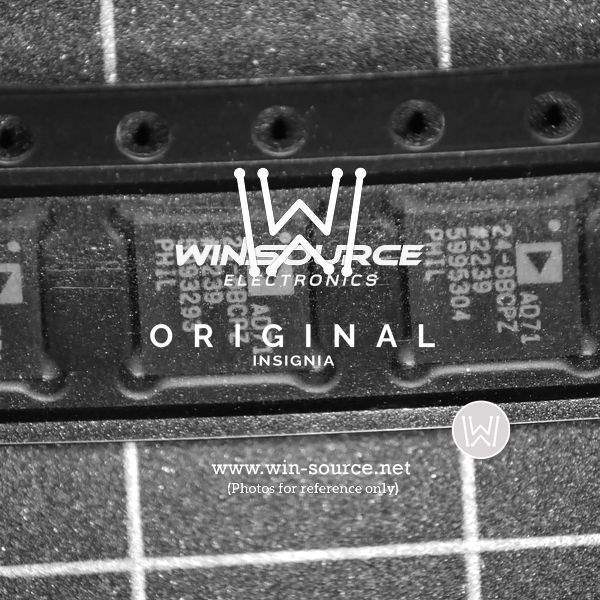

The AD7124-8BCPZ is available in a compact 32-lead LFCSP (Lead Frame Chip Scale Package) that is suitable for space-constrained applications. Analog Devices Inc. ensures high standards of quality and reliability, making this product a trusted choice for engineers and designers seeking performance and durability.

With its robust feature set and flexible input configuration, the AD7124-8BCPZ from Analog Devices Inc. stands out as a versatile ADC solution for a multitude of precision measurement tasks.
