AD8063ART-EBZ High-Speed Op-Amp Evaluation Board by Analog Devices Inc.

The AD8063ART-EBZ is an evaluation board specifically designed for the AD8063, a low-cost, high-speed, voltage feedback, rail-to-rail output operational amplifier from Analog Devices Inc. This evaluation board allows designers and engineers to quickly and efficiently assess the performance of the AD8063 operational amplifier in various circuit configurations and applications, facilitating rapid prototyping and design validation.

The AD8063 op-amp boasts a wide bandwidth of 300 MHz and a fast slew rate of 1000 V/μs, making it an ideal choice for a variety of high-speed applications, including video electronics, ADC/DAC buffers, communication systems, and any application requiring high dynamic performance. Its ability to operate from a single supply voltage ranging from 3 V to 12 V, as well as a dual supply from ±1.5 V to ±6 V, provides versatility in different circuit environments.

The AD8063ART-EBZ evaluation board comes with a flexible layout that accommodates multiple feedback configurations, allowing users to experiment with different resistor and capacitor values to optimize the op-amp's performance for their specific needs. The board also includes provisions for implementing various compensation techniques to stabilize the amplifier in different scenarios.

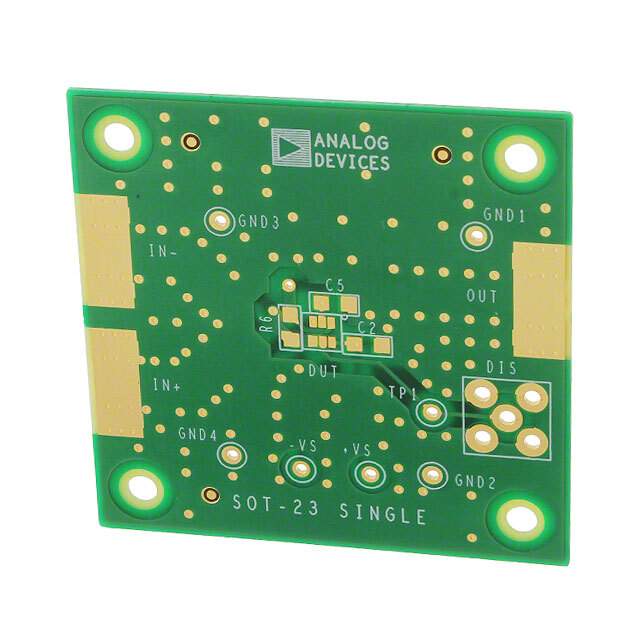

Designed with convenience in mind, the AD8063ART-EBZ features edge-mounted SMA connectors for easy connection to test equipment, ensuring accurate and reliable measurements. The compact size of the board ensures it can be integrated into existing setups without requiring significant additional space.

Key features of the AD8063ART-EBZ evaluation board include:

• Direct evaluation of the AD8063 High-Speed Op-Amp
• Flexible power supply options: single or dual supply operation
• Configurable feedback network for gain and bandwidth optimization
• Edge-mounted SMA connectors for high-frequency signal integrity
• Compact form factor for easy integration into test setups

Whether you're developing high-speed signal processing circuits, working on video line driving, or designing active filters, the AD8063ART-EBZ evaluation board is an essential tool for verifying the performance of the AD8063 op-amp within your application. With this board, Analog Devices Inc. provides an efficient and practical way to streamline your development process and accelerate your time-to-market.
