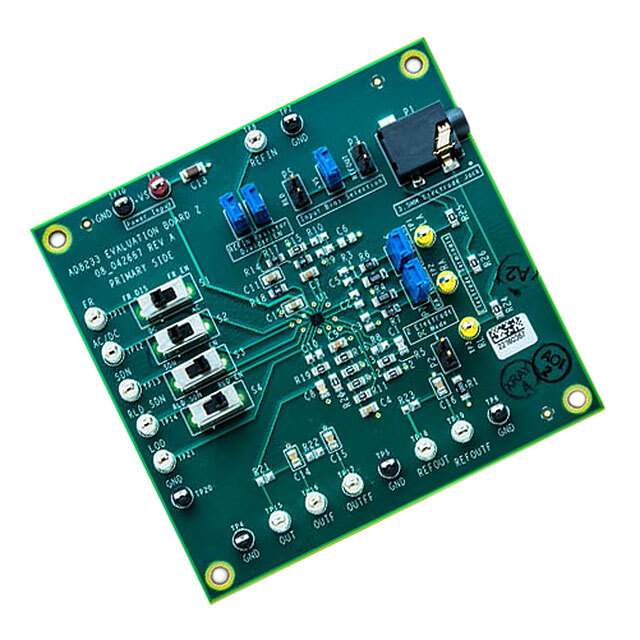

The AD8233CB-EBZ is a specialized evaluation board from Analog Devices Inc., designed to facilitate the assessment and development of the AD8233 Heart Rate Monitor Front End. This compact, low-power, single-lead, heart rate monitor analog front end is ideal for a wide range of vital sign monitoring applications.

Key Features:

• Integrated Noise Reduction: The AD8233 incorporates a high-pass filter to eliminate motion artifacts and electrode offset potential, ensuring clean and accurate heart rate signals.
• Low Power Consumption: With an emphasis on power efficiency, the AD8233 is suitable for portable and battery-powered applications, such as wearable health monitoring devices.
• Flexible Power Supply: The device operates within a power supply range of 2.0 V to 3.5 V, allowing for versatile use in various system configurations.
• Compact Design: The evaluation board is designed to be as small and as easy to use as possible, making it perfect for rapid prototyping and integration into existing systems.

Applications:

The AD8233CB-EBZ is ideal for use in medical and fitness applications, such as:

• Portable ECG
• Fitness and activity heart rate monitors
• Wearable devices for vital sign monitoring
• Remote health monitors
• Biopotential signal acquisition applications

Technical Specifications:

The evaluation board comes with several technical specifications that make it a robust tool for developers and engineers:

• Common-mode rejection ratio (CMRR): 80 dB (DC to 60 Hz)
• Input referred noise: 7 μV p-p (0.5 Hz to 40 Hz)
• Operating temperature range: -40°C to +85°C

The AD8233CB-EBZ evaluation board is a testament to Analog Devices Inc.'s commitment to providing innovative solutions for the healthcare and fitness industries. With its high performance, ease of use, and versatility, it stands as an essential tool for professionals looking to develop advanced heart rate monitoring systems.
