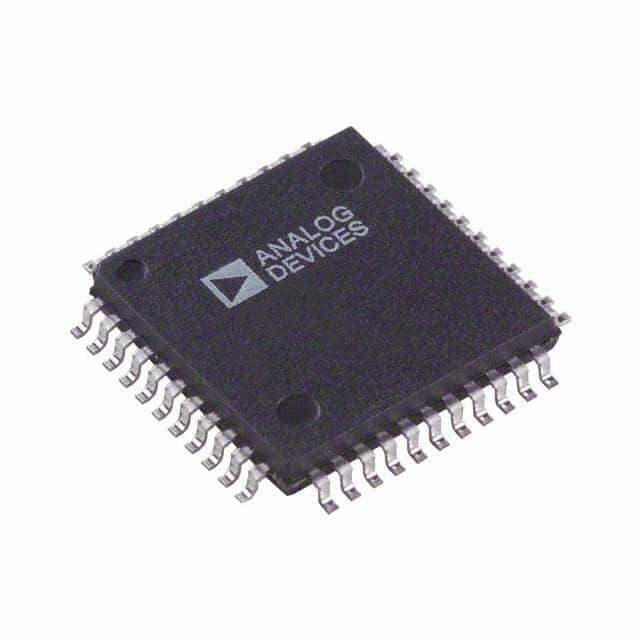

Product Overview: AD9042AST by Analog Devices Inc.

The AD9042AST is a high-performance, 12-bit analog-to-digital converter (ADC) designed by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This ADC is optimized for applications requiring a high dynamic range and fast data acquisition, making it an ideal choice for advanced digital signal processing (DSP) systems.

Key Features


• High-Speed Performance: The AD9042AST boasts a sampling rate of up to 41 MSPS (Mega Samples Per Second), which ensures accurate digitization of high-frequency signals.

• Resolution: With its 12-bit resolution, this ADC provides fine quantization, enabling precise representation of analog input signals.

• Dynamic Range: It features an excellent spurious-free dynamic range (SFDR), making it suitable for applications with demanding signal purity requirements.

• Low Power Consumption: Designed for efficiency, the AD9042AST operates with low power consumption, which is critical for portable and battery-powered devices.

• On-Chip Reference: The inclusion of an on-chip reference voltage simplifies the design and reduces the need for external components.

• Flexible Input Range: It supports a variety of input ranges, providing designers with the flexibility to match the ADC to the signal levels of their specific application.

• Easy Interface: The device features a user-friendly parallel interface that facilitates easy connection to DSPs and microprocessors.

Applications

The AD9042AST is versatile and can be used across a wide array of applications. Some of the primary uses include:


• Medical Imaging Systems

• Radar and Satellite Communications

• Professional Video Cameras

• Test and Measurement Equipment

• Wireless Infrastructure

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the AD9042AST is no exception. It is built to meet high standards of reliability and performance, ensuring that it operates effectively in even the most demanding environments.

Overall, the AD9042AST from Analog Devices Inc. represents a blend of cutting-edge technology with practical application, providing a robust and efficient solution for high-speed, high-resolution data conversion needs.
