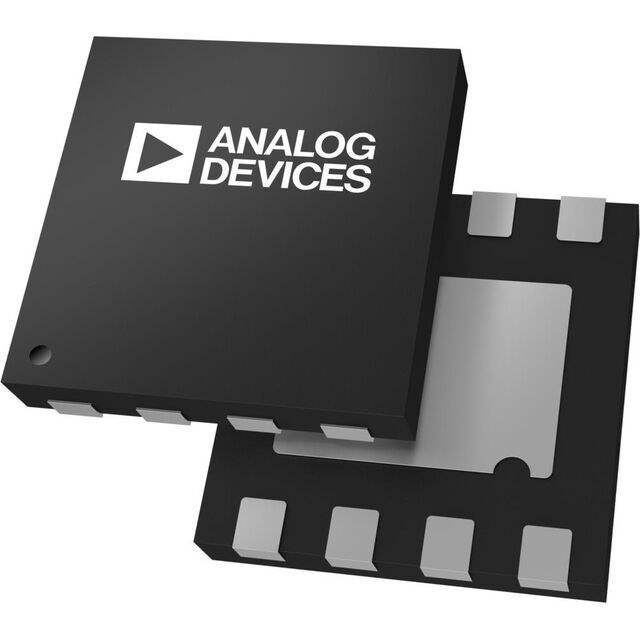

ADL8143ACPZN-CSL Analog Devices Inc.
Same model may have multiple batches, images only for reference.

ADL8143ACPZN-CSL

Part No ADL8143ACPZN-CSL
Manufacturer Analog Devices Inc.
Catalog RF Amplifiers
Description COM SPACE LOW, 8 -14GHZ SATCOM L
Datasheet
ADL8143ACPZN-CSL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The ADL8143 is a low noise amplifier (LNA) that operates from 8 GHz to 14 GHz. The typical gain, noise figure, output power for 1 dB compression (OP1dB), and output third-order intercept (OIP3) are 28.5 dB, 1 dB, 7.5 dBm, and 19.5 dBm, respectively, from 8 GHz to 10 GHz. The nominal quiescent current (IDQ), which can be adjusted, is 35 mA from a 1.5 V supply voltage (VDD). The ADL8143 also features inputs and outputs that are AC-coupled and internally matched to 50 Ω.
