The ADP2441ACPZ-R7 is a state-of-the-art, high-performance, integrated step-down DC-to-DC regulator from the reputable manufacturer Analog Devices Inc. Designed for a variety of applications, this regulator offers an efficient solution for converting higher input voltages into lower output voltages with exceptional accuracy and stability.

Key Features

• Wide Input Voltage Range: The device can handle a broad range of input voltages from 4.5V to 36V, making it versatile for various power supply configurations.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 90% of the input voltage, allowing for a wide range of output options to meet different application requirements.
• High Efficiency: With its integrated high-side MOSFET and proprietary current-mode, fixed-frequency PWM control scheme, the ADP2441ACPZ-R7 operates with high efficiency, reducing power loss and heat generation.

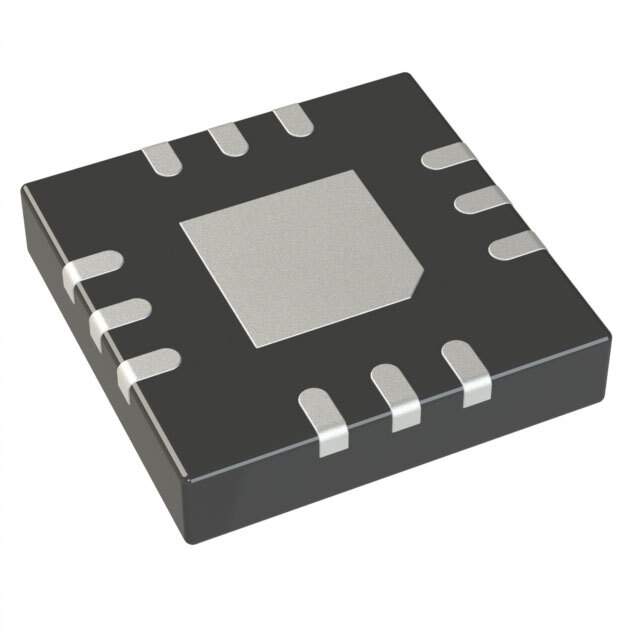

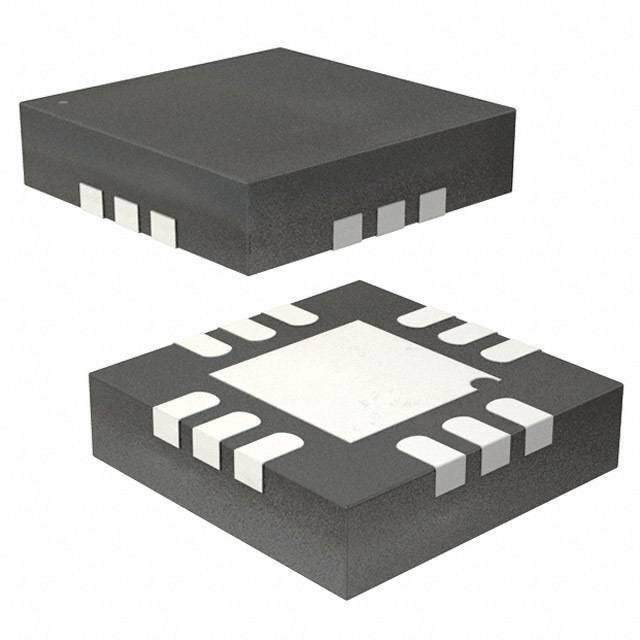

• Compact Package: Encased in a compact 16-lead LFCSP (3x3mm) package, it is suitable for space-constrained applications without sacrificing performance.
• Protection Features: It includes a variety of protection features such as overcurrent protection (OCP), undervoltage lockout (UVLO), and thermal shutdown, ensuring reliable operation under abnormal conditions.
• Low Shutdown Current: The device features a low shutdown current of < 2µA, which significantly reduces power consumption when in standby mode.

Applications

The ADP2441ACPZ-R7 is ideal for a wide range of applications, including:

• Industrial and instrumentation systems
• Networking and telecommunications equipment
• Automotive infotainment and body electronics
• Medical devices
• Energy-efficient and compact power supplies

With its robust design and versatile features, the ADP2441ACPZ-R7 from Analog Devices Inc. is a reliable choice for designers looking to implement an efficient power management solution in their electronic systems.
