ADUM2201BRWZ-RL: A High-Performance Digital Isolator from Analog Devices Inc.

The ADUM2201BRWZ-RL is a robust digital isolator manufactured by Analog Devices Inc., designed to offer superior performance in a variety of electronic applications where signal isolation is critical. This component leverages Analog Devices' proprietary iCoupler® technology to facilitate the transfer of digital signals between circuits while maintaining electrical isolation. The ADUM2201BRWZ-RL is an essential device for ensuring system safety, signal integrity, and meeting stringent regulatory standards for isolation.

Key Features

• Dual-Channel Isolation: The ADUM2201BRWZ-RL provides two independent isolation channels in a bidirectional configuration, allowing for versatile use in different circuit topologies.
• High Data Rates: Capable of supporting data rates up to 25 Mbps, this isolator can easily accommodate high-speed communication requirements.
• Superior Isolation: With an isolation voltage rating of 2500 Vrms for 1 minute, the device offers excellent protection against high voltage transients and enables reliable operation in electrically noisy environments.
• Low Power Consumption: The device is designed for energy efficiency, which is particularly beneficial for power-sensitive applications.
• Wide Temperature Range: It operates within a temperature range of -40°C to +125°C, ensuring reliable performance in harsh environmental conditions.

Applications

The ADUM2201BRWZ-RL is suitable for a wide range of applications, including but not limited to:

• Industrial automation
• Medical equipment
• Power supply control
• Data communication systems
• Isolated sensor interfaces

Package and Reliability

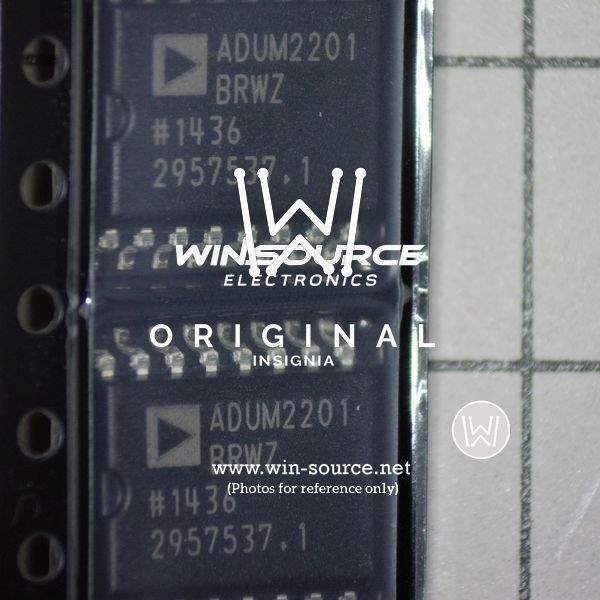

This digital isolator comes in a 16-lead SOIC wide-body package, providing a compact footprint while still ensuring proper isolation clearances and creepage distances. The ADUM2201BRWZ-RL has been rigorously tested to meet Analog Devices Inc.'s high standards for reliability and performance, making it a trusted choice for engineers and designers across various industries.

Whether you're developing safety-critical industrial systems or advanced medical devices, the ADUM2201BRWZ-RL offers the isolation, data integrity, and reliability you need to create state-of-the-art electronic solutions.
