Analog Devices Inc. LTC7103MPUHE#TRPBF High Efficiency, Monolithic Synchronous Step-Down DC/DC Converter

The LTC7103MPUHE#TRPBF from Analog Devices Inc. is a high-performance, monolithic synchronous step-down DC/DC converter designed to deliver efficiency and power in a compact package. This advanced power management IC is engineered to meet the stringent requirements of a wide range of applications, including telecommunications, industrial systems, and automotive electronics.

With a wide input voltage range of 4.5V to 60V, the LTC7103MPUHE#TRPBF is capable of operating in a variety of challenging environments and can withstand voltage surges, making it ideal for automotive start-stop systems and industrial power supplies. The device supports a continuous output current of up to 20A, enabling it to power demanding loads with ease.

The LTC7103MPUHE#TRPBF utilizes a proprietary current mode control architecture which provides fast transient response and excellent loop stability. It features a programmable switching frequency from 200kHz to 2MHz, allowing designers to optimize the converter for efficiency or component size. The high-frequency capability also enables the use of small surface mount inductors and capacitors, reducing the overall solution footprint on the PCB.

Efficiency is a key aspect of the LTC7103MPUHE#TRPBF, with its low RDS(ON) internal switches minimizing power losses. Additionally, it features a Burst Mode operation which significantly improves efficiency at light loads, extending battery life in portable applications. For noise-sensitive applications, the device can be configured to run in pulse-skipping mode, reducing RF interference.

Protection features of the LTC7103MPUHE#TRPBF include overvoltage, overcurrent, and overtemperature protection, ensuring reliable operation under adverse conditions. The device also includes a power good flag, which simplifies power sequencing and system monitoring.

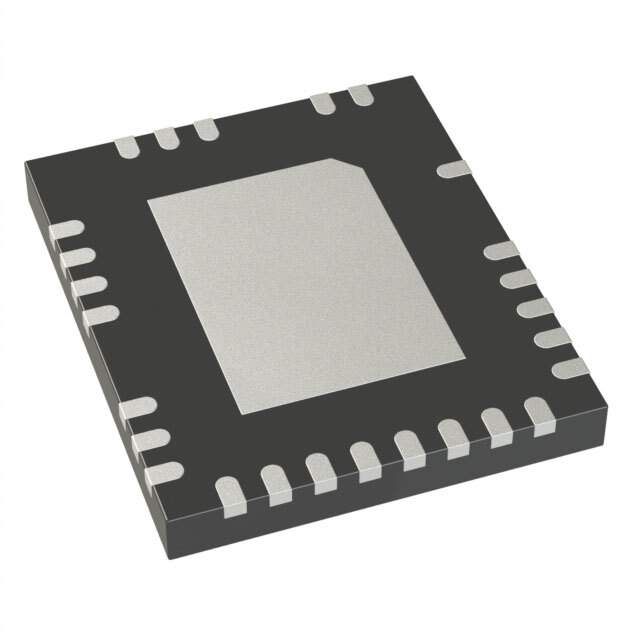

The LTC7103MPUHE#TRPBF is offered in a thermally enhanced 32-lead QFN package, providing a compact solution with excellent thermal performance. It is rated for operation from -40°C to 125°C, making it suitable for use in harsh environments.

Overall, the LTC7103MPUHE#TRPBF from Analog Devices Inc. is a versatile and robust DC/DC converter that provides a high-efficiency, high-reliability solution for a wide range of power management applications.
