Analog Devices Inc. LTC2851MPDD#TRPBF RS485/RS422 Transceiver

The LTC2851MPDD#TRPBF is a high-performance RS485/RS422 transceiver produced by Analog Devices Inc., designed to facilitate robust communication in harsh industrial environments. This integrated circuit is part of a family of transceivers that provide enhanced electrostatic discharge (ESD) protection, extended temperature ranges, and improved noise immunity, making it an ideal choice for critical communication applications.

Featuring a differential data transmission that offers a significant advantage in terms of noise immunity, the LTC2851MPDD#TRPBF is capable of achieving data rates up to 20Mbps. This makes it suitable for high-speed data communication in complex systems such as factory automation, HVAC systems, and networked industrial equipment.

The device operates from a single 3.3V supply, which is a common voltage level in modern digital systems, contributing to its ease of integration into existing designs. The LTC2851MPDD#TRPBF also includes a slew rate limited driver that reduces EMI and reflections, allowing for reliable data transmission over long cable runs or in electrically noisy environments.

One of the key features of this transceiver is its extended operating temperature range of -55°C to +125°C, which qualifies it for use in military and automotive applications where extreme temperatures are commonplace. This temperature resilience ensures that communication remains consistent and reliable under varying environmental conditions.

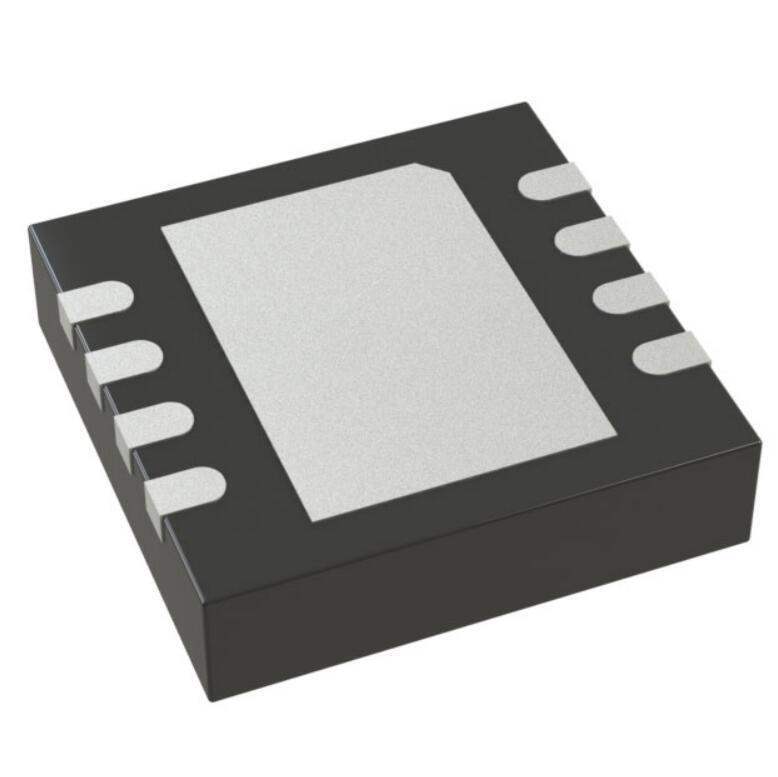

The LTC2851MPDD#TRPBF comes in a compact DFN package, which is suitable for space-constrained applications. It also supports half-duplex communication, which means that it can both transmit and receive data but not simultaneously, a common mode of operation for RS485/RS422 communications.

With its robust design, the LTC2851MPDD#TRPBF includes integrated protection features such as over-temperature protection and short-circuit protection, which safeguard the device and the system it is part of from potential damage due to abnormal operating conditions. Additionally, the transceiver is available in tape and reel packaging (denoted by the #TRPBF suffix), which facilitates efficient assembly during the manufacturing process, especially for high-volume production.

In summary, the LTC2851MPDD#TRPBF from Analog Devices Inc. is a high-quality RS485/RS422 transceiver that offers a blend of performance, reliability, and protection for demanding industrial communications applications.
