Product Overview: LTC3129IUD#TRPBF by Analog Devices Inc.

The LTC3129IUD#TRPBF is a high-efficiency, 200mA buck-boost DC/DC converter designed by Analog Devices Inc. to meet the needs of a wide range of power supply applications. This versatile component provides a continuous transition between buck and boost modes, making it ideal for applications where the input voltage can vary above or below the regulated output voltage.

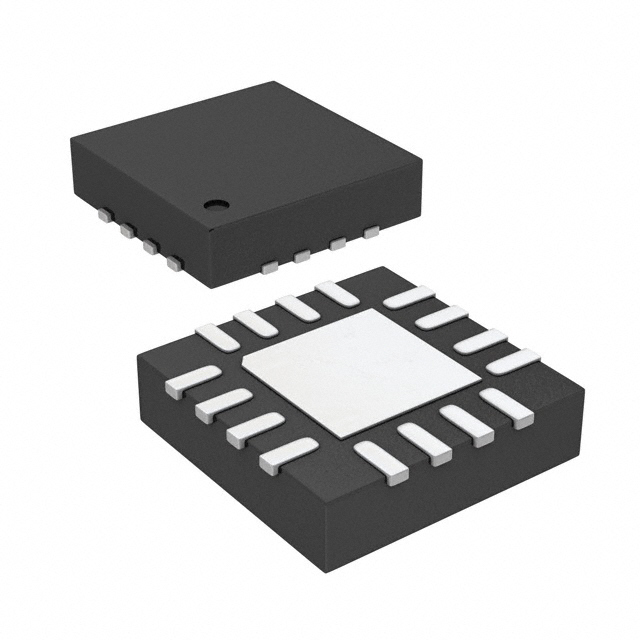

Encased in a compact 16-lead QFN package, the LTC3129 features a broad input voltage range of 1.6V to 5.5V, allowing it to operate from a variety of power sources including single-cell Li-Ion, multiple Alkaline/NiMH cells, or energy harvesting systems. This flexibility makes it an excellent choice for portable, battery-powered devices where extended battery life is crucial.

The device boasts an adjustable output voltage range from 1.8V to 5.25V, which is set by an external resistor divider. This allows designers to tailor the output to match specific circuit requirements. Additionally, its high efficiency is achieved through low quiescent current and a Burst Mode operation, which reduces the operating current to only 1.3µA, further prolonging battery life in applications with light load conditions.

The LTC3129IUD#TRPBF also features a Power Good flag, which indicates when the output is within ±10% of the programmed value. This feature is particularly useful for power sequencing and monitoring system integrity. Moreover, the converter integrates soft-start capability to limit inrush current during startup, and it is protected against over-temperature and short-circuit conditions, ensuring reliable operation under various stress conditions.

Designed for automated manufacturing processes, the LTC3129IUD#TRPBF is available in a thermally enhanced, lead-free package and is RoHS compliant. It is suitable for a wide array of applications, including energy harvesting, wireless sensors, medical devices, and backup power supplies, where efficient energy usage and compact size are of paramount importance.

In summary, the LTC3129IUD#TRPBF from Analog Devices Inc. is a highly adaptable buck-boost converter that offers both performance and convenience for designers looking to create efficient, space-conscious power supply solutions.
