The LTC3520IUF#TRPBF is a versatile, high-performance Dual Channel Synchronous Step-Down DC/DC Converter designed and manufactured by Analog Devices Inc., a renowned leader in the field of high-performance analog integration. This product is tailored to meet the demanding needs of various applications, including portable devices, automotive systems, and industrial equipment.

Key Features

• Wide Input Voltage Range: The LTC3520IUF#TRPBF operates efficiently with an input voltage range from 2.5V to 5.5V, making it suitable for single cell Li-Ion, multi-cell alkaline, or NiMH applications.
• Dual Channel Output: It provides two independent output voltages that can be adjusted from 0.8V to 5V, which enables it to power a wide range of components in a system.
• High Efficiency: With its synchronous rectification design and internal switches, it achieves up to 95% efficiency, reducing heat generation and improving battery life in portable applications.

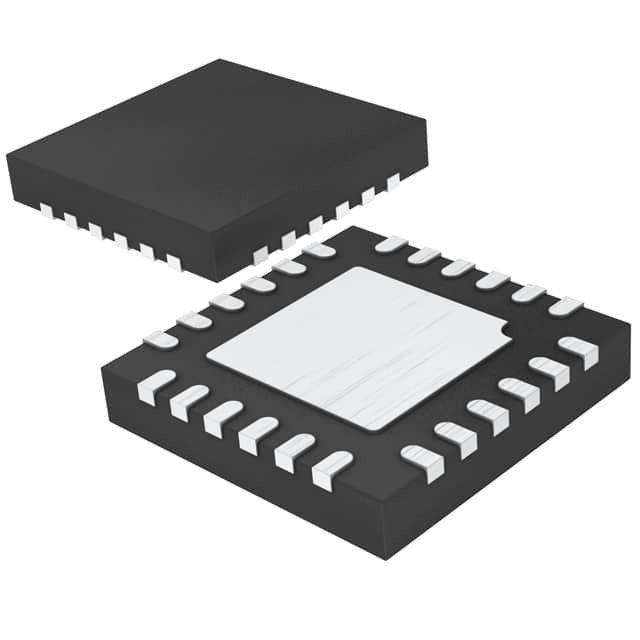

• Compact Package: The device comes in a 24-lead QFN package, which is highly compact and suitable for space-constrained applications.
• Thermal Performance: It features excellent thermal performance, ensuring reliable operation even under high load conditions.
• Low Noise Operation: The LTC3520IUF#TRPBF employs a constant frequency, current mode architecture that minimizes both output voltage ripple and switching noise, making it ideal for noise-sensitive applications.

Applications

The LTC3520IUF#TRPBF can be used in a variety of applications that require efficient power management and conversion. It is particularly well-suited for:

• Handheld Devices
• Portable Media Players
• Wireless and DSL Modems
• GPS Receivers
• Automotive Power Systems
• Point-of-Sale Terminals
• Industrial Instrumentation

Quality and Reliability

Analog Devices Inc. is committed to providing high-quality products, and the LTC3520IUF#TRPBF is no exception. It is designed to meet the stringent requirements of industrial and automotive standards, ensuring both reliability and performance.
