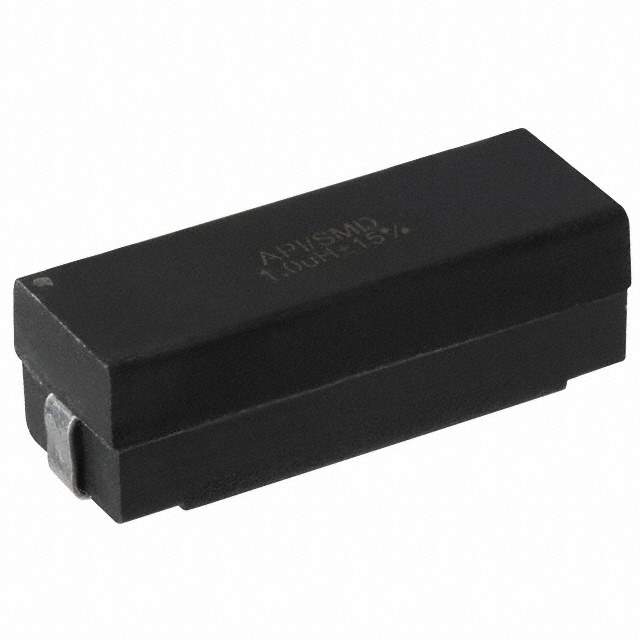

8532R-27L Real Image
Same model may have multiple batches, images only for reference.

8532R-27L

Part No 8532R-27L
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 150UH 1.04A 330MOHM SM / 150 µH Unshielded Inductor 1.04 A 330mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr API Delevan Inc.
Series 8532R
Package Tape & Reel (TR)
Material - Core Ferrite
Inductance 150 µH
Tolerance ±15%
Current Rating (Amps) 1.04 A
Current - Saturation (Isat) 520mA
Shielding Unshielded
DC Resistance (DCR) 330mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.860" L x 0.320" W (21.84mm x 8.12mm)
Height - Seated (Max) 0.286" (7.26mm)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 8532R-27L TR 480
Standard Package 480
Win Source Part Number 1183231-8532R-27L
Ultra Librarian 3D Model Ultra Librarian 8532R-27L CAD Model

Description

The 8532R series inductor from API Delevan Inc. is a fixed inductor with an inductance of 150 µH.

  • Inductance: 150 µH
  • DC Resistance (DCR): 330mOhm Max
  • Current Rating: 1.04 A
  • Material: Ferrite
  • Tolerance: ±15%
  • Package: Nonstandard
  • Packaging: Tape & Reel (TR)
  • Height: 0.286" (7.26mm)
  • Dimensions: 0.860" L x 0.320" W (21.84mm x 8.12mm)
  • Temperature Range: -55°C ~ 125°C
  • REACH Affected: No
  • Alternative Part: 8532R-27L TR 480
  • Shielded: Yes
  • Saturation Current (Isat): 520mA
