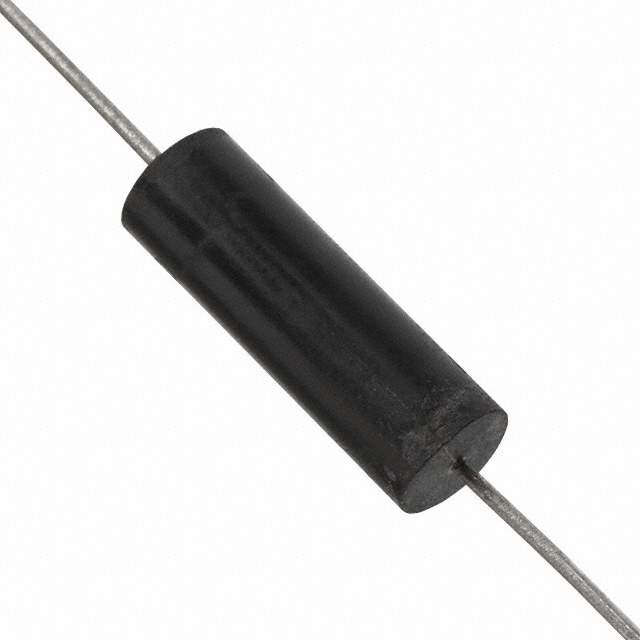

Same model may have multiple batches, images only for reference.

2474R-09L

Name: 2474R-09L
Brand: API Delevan Inc.
SKU: 1327627
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	2474R-09L
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 4.01A 22 MOHM TH / 4.7 µH Unshielded Molded Inductor 4.01 A 22mOhm Max Axial
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	API Delevan Inc.
Packaging	Bulk
Type	Molded
Material - Core	Ferrite
Inductance	4.7 µH
Tolerance	±15%
Current Rating (Amps)	4.01 A
Current - Saturation (Isat)	2.9A
Shielding	Unshielded
DC Resistance (DCR)	22mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	Through Hole
Case / Package	Axial
Size / Dimension	0.240" Dia x 0.740" L (6.10mm x 18.80mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	DN7714,2474R09L,2474R-09L BULK 500
Standard Package	500
Win Source Part Number	1327627-2474R-09L
Ultra Librarian 3D Model	Ultra Librarian 2474R-09L CAD Model

Alternative Products

Description

API Delevan Inc. presents the 2474R-09L molded inductor.

Shielded: No
Inductance: 4.7 µH
Tolerance: ±15%
Material: Ferrite core
DC Resistance (DCR): 22mOhm Max
Current Saturation: 2.9A
Current Rating: 4.01A
Packaging: Bulk
Size: 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
REACH: Unaffected
ROHS3 compliant: Yes
