Products specifications

Categories Power Supplies - Board Mount
Manufacturer Artesyn Embedded Technologies
Packaging Bulk
Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Minimum) 36V
Voltage - Input (Maximum) 75V
Voltage - Output 1 3.3V
Voltage - Output 2 5V
Current - Output (Maximum) 3.6A, 150mA
Power (W) 12.6W
Voltage - Isolation 2.25kV
Applications ITE (Commercial)
Features OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 98%
Mounting Style Through Hole
Manufacturer Package 18-DIP Module
Parts Dimension 2.30" L x 1.45" W x 0.58" H (58.4mm x 36.8mm x 14.7mm)
Manufacturer Pack Quantity 64
MSL Level 1 (Unlimited)
Win Source Part Number 1186279-IPM300
Manufacturer Homepage www.emersonnetworkpower.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IPM300 CAD Model

Description

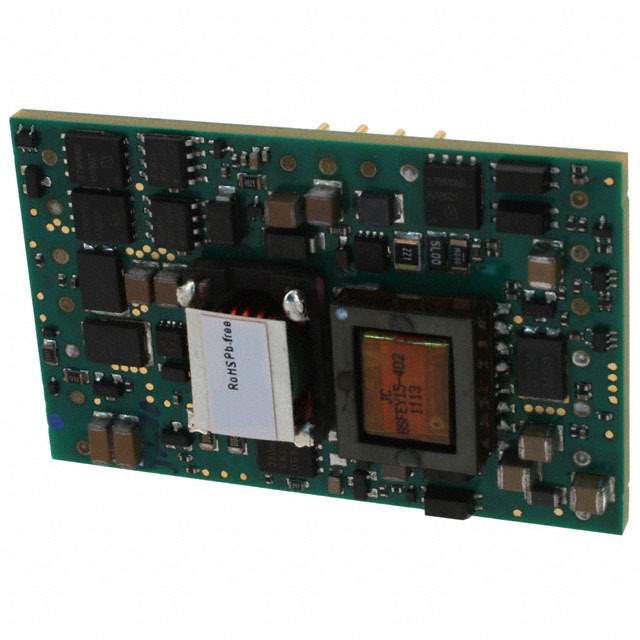

The Artesyn Embedded Technologies IPM300 is an isolated module DC-DC converter.

  • Outputs: It has two outputs, with output 1 having a voltage of 3.3V and output 2 having a voltage of 5V.
  • Current: The converter has a maximum output current of 3.6A and 150mA, respectively.
  • Input Voltage Range: The input voltage range is from 36V to 75V, while the voltage isolation is 2.25kV.
  • Efficiency and Features: The converter has an efficiency of 98% and features OVP, SCP, and UVLO.
  • Mounting and Package: It has a through-hole mounting style and comes in an 18-DIP module package.
  • Application: The converter is suitable for use in ITE (Commercial) applications.
  • Status: The converter is obsolete, and the supply and demand status is limited.
