Same model may have multiple batches, images only for reference.

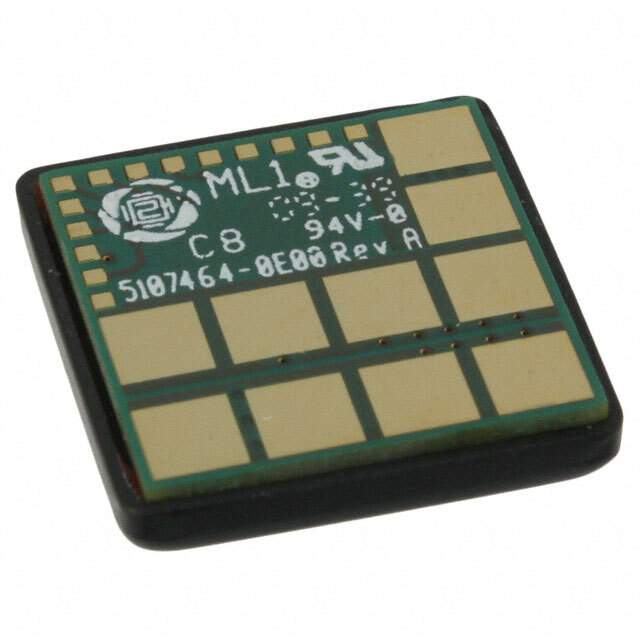

LGA06C-00SADJJ Real Image
Same model may have multiple batches, images only for reference.

LGA06C-00SADJJ

Part No LGA06C-00SADJJ
Manufacturer Artesyn Embedded Technologies
Catalog Power Supplies Board Mount DCDC Converters
Description 3, 6, 10 and 20 A output current rating Power
Datasheet
LGA06C-00SADJJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Artesyn Embedded Technologies
Series LGAC
Packaging Reel - TR
Type Non-Isolated PoL Module
Number of Outputs 1
Input Voltage MIN 3V
Voltage Input MAX 14V
Voltage - Output 1 0.59 ~ 5.1 V
Current - Output (Maximum) 6A
Power (Watts) 30W
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 92%
Mounting SMD
Package 24-PowerBLGA Module
Size 0.65" L x 0.65" W x 0.13" H (16.5mm x 16.5mm x 3.3mm)
Manufacturer Package 24-LGA (16.51x16.51)
Control Features Enable, Active High
Win Source Part Number 1196294-LGA06C-00SADJJ
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Family Name LGA06C-00SADJ
Introduction Date January 14, 2014
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian LGA06C-00SADJJ CAD Model

Description

The supply and demand status is limited, and the product is part of the LGAC series.

  • Supply and Demand Status: Limited
  • Series: LGAC
  • Win Source Part Number: 1196294-LGA06C-00SADJJ
  • Product Type: Non-isolated PoL module
  • Temperature Range: -40°C to 85°C
  • Features: Remote on/off, OVP, SCP, UVLO
  • Package Size: 24-PowerBLGA module
  • Application: ITE (Commercial)
  • Mounting: SMD
  • Power Output: 30W
  • Size: 0.65" L x 0.65" W x 0.13" H (16.5mm x 16.5mm x 3.3mm)
  • Control Features: Enable, Active High
  • Output: One output with a voltage range of 0.59 ~ 5.1 V
  • Efficiency: 92 percent
  • Family Name: LGA06C-00SADJ
