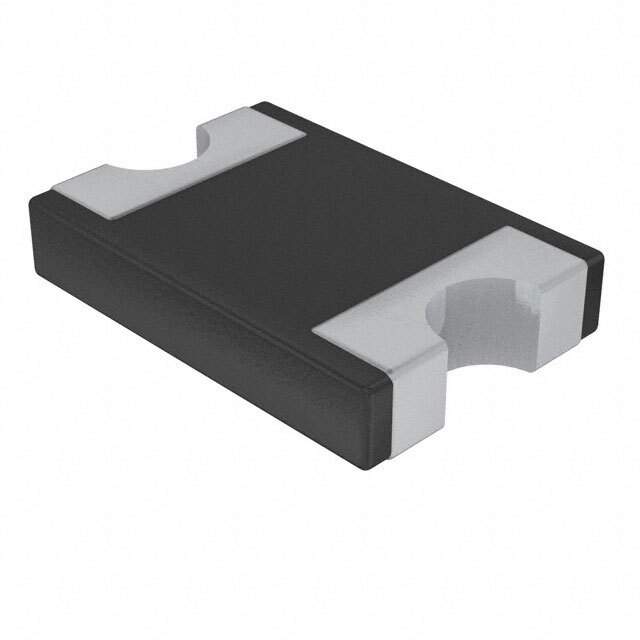

SD2114S040S5R0 Real Image
Same model may have multiple batches, images only for reference.

SD2114S040S5R0

Part No SD2114S040S5R0
Manufacturer AVX Corp/Kyocera Corp
Catalog Diodes, Rectifiers - Single
Datasheet
SD2114S040S5R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr KYOCERA AVX
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 5A (DC)
Voltage - Forward (Vf) (Max) @ If 550 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Supplier Device Package 2114/DO-214AA
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SD2114S040S5R0
Other Names 478-7816-6,478-7816-2,478-7816-1
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282488-SD2114S040S5R0
Ultra Librarian 3D Model Ultra Librarian SD2114S040S5R0 CAD Model

Description

The SD2114S040S5R0 is a Schottky diode that comes in a 2-SMD, no-lead package.

  • Voltage DC Reverse Rating: 40V
  • Average Rectified Current: 5A
  • Forward Voltage: 550mV @ 5A
  • Reverse Leakage Current: 500μA @ 40V
  • Recovery Speed: Fast, less than 500ns
  • Capacitance: 0F
  • Operating Temperature: -55°C to 125°C
  • Supplier: KYOCERA AVX
