Same model may have multiple batches, images only for reference.

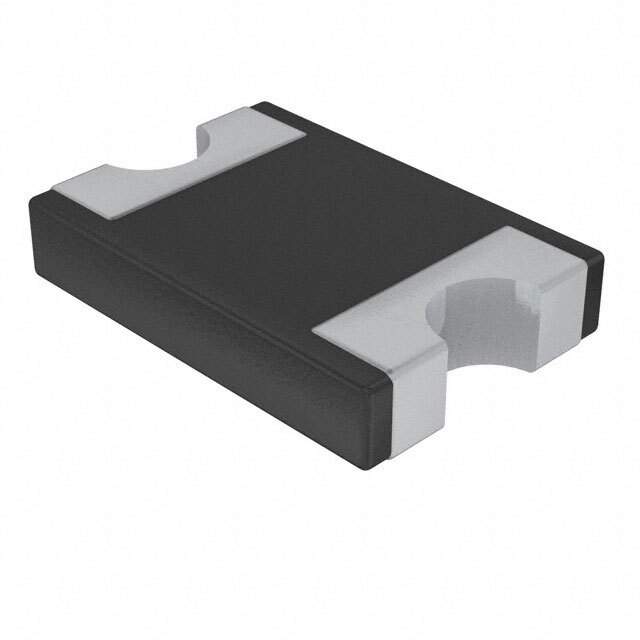

SD2114S040S8R0 Real Image
Same model may have multiple batches, images only for reference.

SD2114S040S8R0

Part No SD2114S040S8R0
Manufacturer AVX Corp/Kyocera Corp
Catalog Diodes, Rectifiers - Single
Datasheet
SD2114S040S8R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr KYOCERA AVX
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 8A (DC)
Voltage - Forward (Vf) (Max) @ If 550 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Supplier Device Package 2114/DO-214AA
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SD2114S040S8R0
Other Names 478-7817-6,478-7817-2,478-7817-1
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282489-SD2114S040S8R0
Ultra Librarian 3D Model Ultra Librarian SD2114S040S8R0 CAD Model

Description

The SD2114S040S8R0 is a Schottky diode that is ideal for use in rectification and power management applications.

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 8A DC
  • Voltage Drop: 550mV @ 8A
  • Reverse Leakage Current: 500µA @ the maximum reverse voltage
  • Package: 2-SMD, no lead package
  • Mounting Type: Surface Mount Technology (SMT)
  • Operating Temperature Range: -55°C to 125°C
  • Product Line: AVX product line
  • Packaging: Tape and Reel
  • Standard Package: 5,000 units
