Same model may have multiple batches, images only for reference.

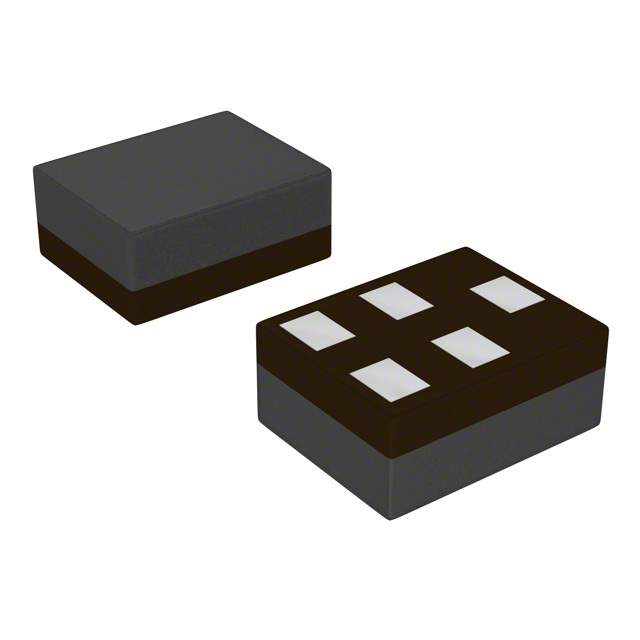

SF14-1575F5UUA1 Real Image
Same model may have multiple batches, images only for reference.

SF14-1575F5UUA1

Part No SF14-1575F5UUA1
Manufacturer AVX Corp/Kyocera Corp
Catalog SAW Filters
Description FILTER SAW 1.57542GHZ SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer AVX Corp/Kyocera Corp
Packaging Reel - TR
Status Active
Frequency - Center 1.575GHz
Bandwidth 3MHz
Insertion Loss 1.4dB
Applications GPS
Mounting SMD (SMT)
Height (Max) 0.028" (0.70mm)
Dimension 0.055" L x 0.043" W (1.40mm x 1.10mm)
Win Source Part Number 028236-SF14-1575F5UUA1
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SF14-1575F5UUA1 CAD Model

Description

The AVX Corp/Kyocera Corp 028236-SF14-1575F5UUA1 is a GPS filter that comes in a reel - TR packaging.

  • Manufacturer: AVX Corp/Kyocera Corp
  • Packaging: Reel - TR
  • Insertion Loss: 1.4dB
  • Bandwidth: 3MHz
  • Frequency Center: 1.575GHz
  • Mounting: SMD (SMT)
  • Dimension: 0.055" L x 0.043" W (1.40mm x 1.10mm)
  • Supply and Demand Status: balanced
  • Quantity per Package: 3k pcs
