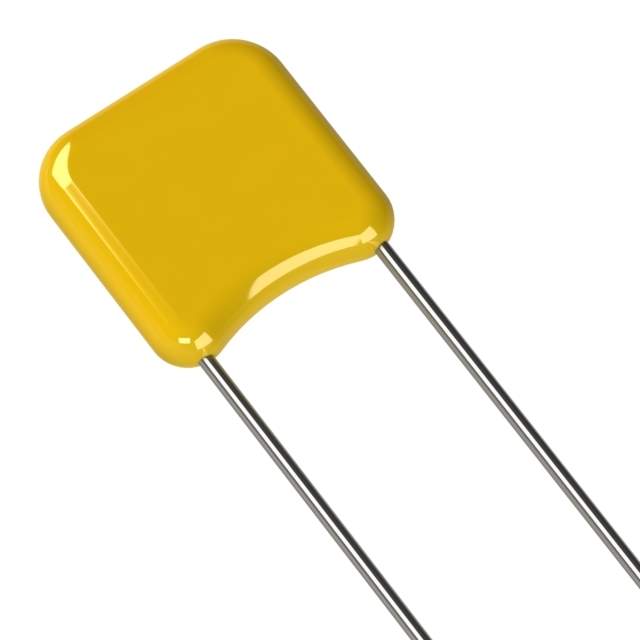

SR501C225JAA Real Image
Same model may have multiple batches, images only for reference.

SR501C225JAA

Part No SR501C225JAA
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR501C225JAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Bulk
Capacitance 2.2 µF
Tolerance ±5%
Voltage - Rated 100V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.560" (14.22mm)
Lead Spacing 0.400" (10.16mm)
Lead Style Straight
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305530-SR501C225JAA
Ultra Librarian 3D Model Ultra Librarian SR501C225JAA CAD Model

Description

The KYOCERA AVX SR501C225JAA is a ceramic capacitor designed for general purpose applications.

  • Capacitance: 2.2 µF
  • Voltage Rated: 100V
  • Tolerance: ±5%
  • Temperature Coefficient: X7R
  • Height Seated (Max): 0.560" (14.22mm)
  • Lead Spacing: 0.400" (10.16mm)
  • Temperature Range: -55°C ~ 125°C
  • Package/Case: Radial
  • Mounting: Through-hole mounting
  • Packaging: Bulk packaging
  • Dimension: 0.500" L x 0.200" W (12.70mm x 5.08mm)
  • ECCN: EAR99 compliant
  • REACH: REACH unaffected
