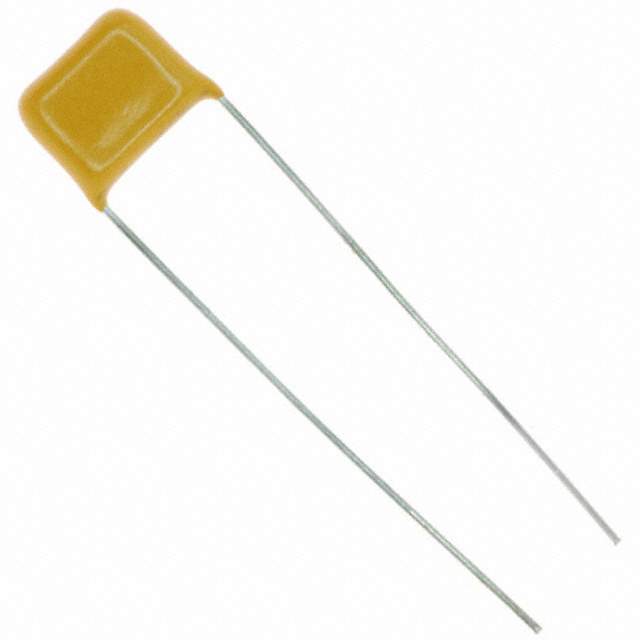

SV01GC331KAR Real Image
Same model may have multiple batches, images only for reference.

SV01GC331KAR

Part No SV01GC331KAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV01GC331KAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 330 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.250" L x 0.200" W (6.35mm x 5.08mm)
Height - Seated (Max) 0.220" (5.59mm)
Lead Spacing 0.170" (4.32mm)
Lead Style Straight
Other Names Q8940968,478-4039
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302926-SV01GC331KAR
Ultra Librarian 3D Model Ultra Librarian SV01GC331KAR CAD Model

Description

The KYOCERA AVX ceramic capacitor is a high voltage product with a capacitance of 330 pF and a voltage rating of 2000V (2kV).

  • Capacitance: 330 pF
  • Voltage Rating: 2000V (2kV)
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Series: SV series
  • Application: General Purpose
  • Height (Seated): 0.220" (5.59mm)
  • Thickness: Not Specified
  • Lead Spacing: 0.170" (4.32mm)
  • Lead Style: Straight
  • Mounting: Through Hole
  • Package/Case: Radial
  • Operating Temperature Range: -55°C ~ 125°C
  • Win Source Part Number: 1302926-SV01GC331KAR
