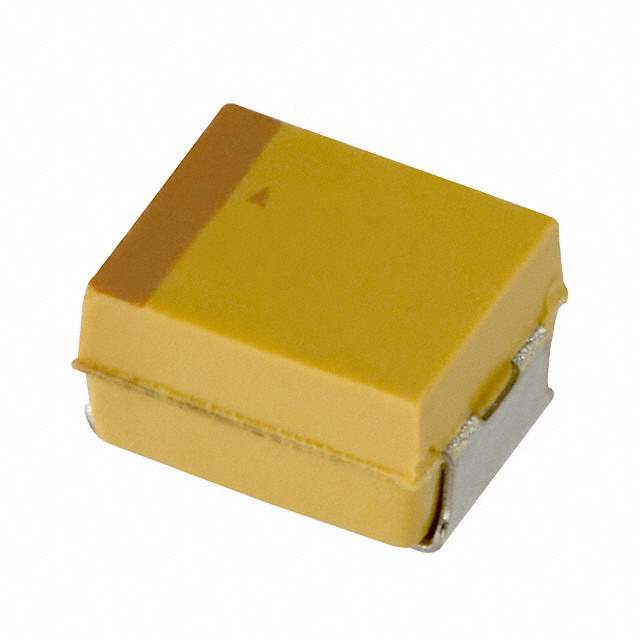

The TAJT226M006RNJ is a surface-mount solid tantalum capacitor manufactured by AVX Corporation. It is designed for general-purpose applications requiring stable capacitance and reliability.

Applications

• Decoupling capacitors in power circuits.
• Filtering capacitors in signal processing circuits.
• Timing circuits and oscillators.
• Bypass capacitors in digital circuits.
• General-purpose applications in consumer electronics, industrial equipment, and telecommunications.

Features

• Case Size: T Case
• Capacitance: 22µF (Microfarads)
• Voltage Rating: 6.3V (Volts DC)
• Tolerance: ±20%
• ESR (Equivalent Series Resistance): Standard ESR (Consult datasheet for specific value)
• Termination Style: Surface Mount (SMD)
• Operating Temperature Range: -55°C to +125°C
• RoHS Compliant: Yes

Benefits

• Stable Capacitance: Solid tantalum construction provides stable capacitance over a wide temperature range.
• Compact Size: T case size allows for high-density board designs.
• Long Lifespan: Tantalum capacitors offer a long operational life.
• Reliable Performance: Suitable for demanding applications requiring consistent performance.
• Surface Mount Design: Enables automated assembly for cost-effective manufacturing.

Additional Details

The TAJT226M006RNJ utilizes a solid tantalum electrolytic as its dielectric material, contributing to its stable electrical characteristics. The surface mount design is suitable for automated assembly and reduces manufacturing costs. For specific ESR, ripple current, and other performance characteristics, consult the official AVX datasheet for the TAJT series. Voltage derating is recommended for extended lifespan and enhanced reliability.
