Same model may have multiple batches, images only for reference.

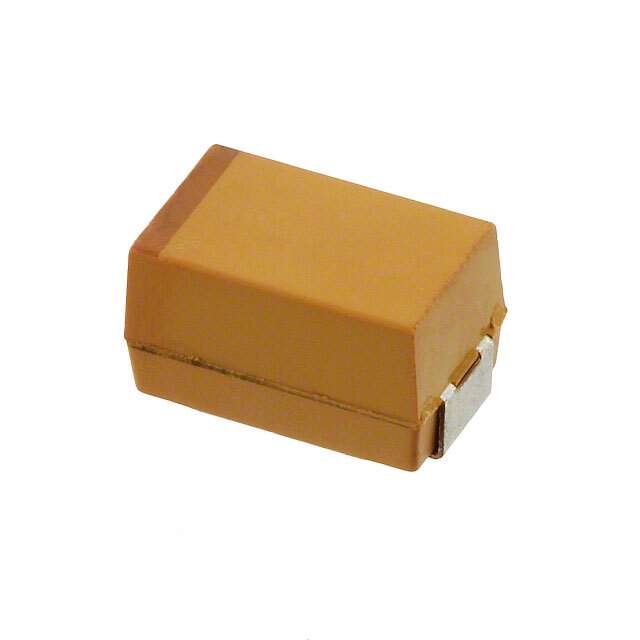

TCJA226M004R0300 Real Image
Same model may have multiple batches, images only for reference.

TCJA226M004R0300

Part No TCJA226M004R0300
Manufacturer AVX Corporation
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 22UF 4V 1206 / Cap Tant Polymer 22uF 4VDC A CASE 20% (3.2 X 1.6 X 1.6mm) SMD 3216-18 0.3 Ohm 125°C T/R
Datasheet
TCJA226M004R0300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TCJ
Packaging Reel package
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 4V
Type Molded
ESR (Equivalent Series Resistance) 300 mOhm
Operating Temperature Range -55°C ~ 125°C
Lifetime @ Temp. 2000 Hrs @ 125°C
Mounting SMD
Package 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Manufacturer Size Code A
Features General
Win Source Part Number 796501-TCJA226M004R0300
Popularity Medium
Supply and Demand Status Limited
Family Name TCJ
Introduction Date May 25, 2005
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TCJA226M004R0300 CAD Model

Description

AVX Corporation presents the TCJ series of molded capacitors.

  • Capacitance: 22μF
  • Tolerance: ±20%
  • ESR: 300 mOhm
  • Lifetime: 2000 Hrs @ 125°C
  • Package: 1206 (3216 Metric)
  • Mounting: SMD
  • Voltage Rating: 4V DC
  • Operating Temperature: -55°C to 125°C
  • Manufacturer Size Code: A
  • Family Name: TCJ
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height (Max): 0.071" (1.80mm)
  • Applications: General Use
  • Halogen-Free: Yes
  • Alternative Parts: NTP226M4TRA2(200)F, T55A226M004C0200, T55A226M004C0500, T55A226M004C0300
  • Estimated EOL Date: 2028
  • ECCN: EAR99
  • Country of Origin: Czech Republic
