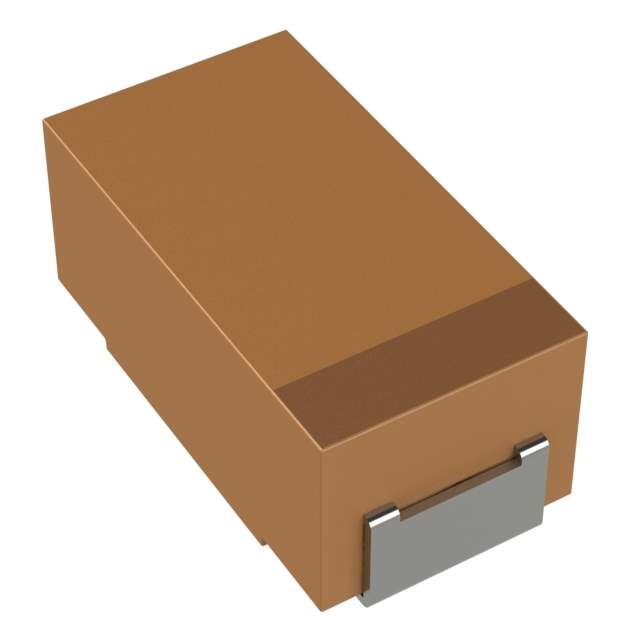

The TPSC336K016R0300 is a tantalum capacitor produced by AVX Corporation. It is a surface-mount device (SMD) characterized by stable capacitance and low Equivalent Series Resistance (ESR).

Applications:

• DC-DC Converters: Utilized for input and output filtering.
• Power Management Systems: Provides stable voltage for integrated circuits.
• Portable Devices: Integrated into smartphones, tablets, and other portable devices for power supply decoupling.
• Industrial Control Systems: Suitable for use in demanding industrial environments.
• Medical Equipment: Used in applications requiring high reliability and stable electrical characteristics.

Features:

• Surface Mount Technology (SMT): Enables automated assembly processes.
• Tantalum Construction: Offers high capacitance in a small form factor.
• Low ESR: Reduces power loss and enhances circuit efficiency.
• Stable Capacitance: Provides consistent performance under varying conditions.
• RoHS Compliance: Meets Restriction of Hazardous Substances standards.

Benefits:

• Improved Circuit Efficiency: Low ESR minimizes heat generation and energy loss.
• Consistent Performance: Stable capacitance ensures reliable operation across a wide temperature range.
• Compact Size: Allows for high-density circuit designs.
• Long-Term Reliability: Tantalum construction offers excellent durability.
• Reduced Noise: Effective decoupling minimizes voltage ripple and noise.

Technical Specifications:

The TPSC336K016R0300 has a capacitance of 33µF with a tolerance of ±10%. It has a voltage rating of 16V DC. The ESR is 0.300 Ohms. The operating temperature range is typically -55°C to +125°C. The case size is EIA 2824. Standard termination finish is tin (Sn).
