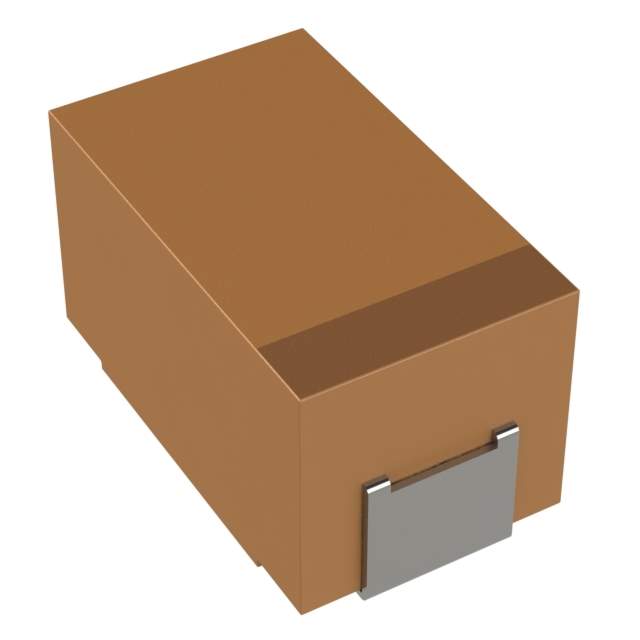

TPSE158M004R0075 Real Image
Same model may have multiple batches, images only for reference.

TPSE158M004R0075

Part No TPSE158M004R0075
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 1500UF 4V 20% 2917 / Cap Tant Solid 1500uF 4V E CASE 20% (7.3 X 4.3 X 4.1mm) Inward L SMD 7343-43 0.075 Ohm 125°C T/R
Datasheet
TPSE158M004R0075 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TPS
Packaging Reel package
Capacitance 1500μF
Tolerance ±20%
Voltage Rating DC 4V
Type Molded
ESR (Equivalent Series Resistance) 75 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.169" (4.30mm)
Manufacturer Size Code E
Features General
Win Source Part Number 798314-TPSE158M004R0075
Popularity Medium
Supply and Demand Status Limited
Family Name TPS
Introduction Date May 05, 2009
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TPSE158M004R0075 CAD Model

Description

The AVX TPS series capacitor is a molded type capacitor.

  • Capacitance: 1500μF
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 75 mOhm
  • Voltage Rating DC: 4V
  • Operating Temperature Range: -55°C to 125°C
  • Package: 2917 (7343 Metric)
  • Mounting: SMD
  • Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height: 0.169" (4.30mm)
  • Halogen-Free Compliant: Yes
  • Estimated EOL Date: 2028
