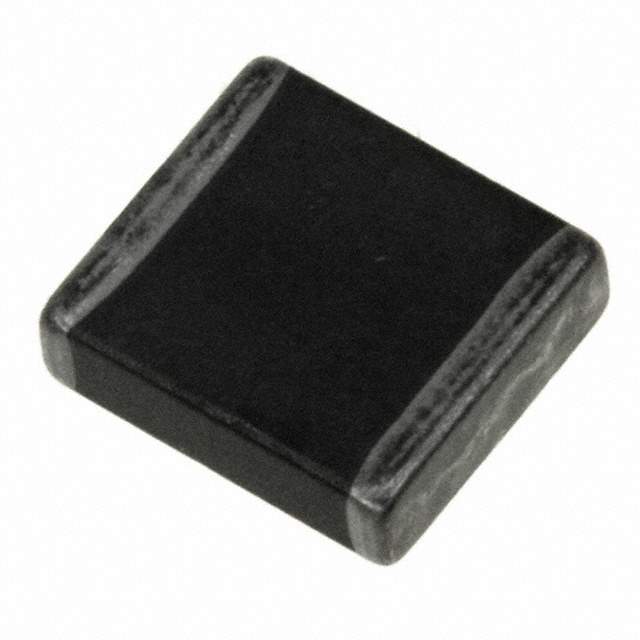

The VC15MA0340KBA is a multilayer ceramic capacitor (MLCC) from AVX Corporation. It is designed for a wide range of applications, providing stable capacitance and reliable performance. MLCCs are known for their small size, high capacitance values, and excellent temperature stability.

Applications:

• Bypass Capacitors: Filtering noise and providing a stable voltage supply in electronic circuits.
• Decoupling Capacitors: Providing a local energy source for integrated circuits to reduce voltage fluctuations.
• Timing Circuits: Used in timing circuits for oscillators and other timing-sensitive applications.
• Filtering: Filtering unwanted frequencies in signal processing applications.
• RF and Microwave Applications: Providing stable capacitance in high-frequency circuits.

Features:

• Multilayer Ceramic Construction: Provides high capacitance values in a small package size.
• Stable Capacitance: Offers stable capacitance over a wide range of temperatures and frequencies.
• Low ESR: Low Equivalent Series Resistance (ESR) minimizes power losses.
• High Reliability: Designed for high reliability and long-term performance.
• Surface Mount Technology (SMT): Suitable for automated assembly processes.
• RoHS Compliant: Complies with RoHS environmental standards.

Benefits:

• Compact Size: Small package size saves board space.
• Stable Performance: Provides stable capacitance over a wide range of conditions.
• High Reliability: Ensures long-term reliable performance.
• Easy Assembly: Surface mount technology simplifies the assembly process.
• Environmentally Friendly: RoHS compliance ensures environmental compliance.

Additional Details:

Without specific datasheet information, typical characteristics of an MLCC like VC15MA0340KBA would include a specific capacitance value (e.g., 0.033uF or 33nF), a voltage rating (e.g., 50V), and a temperature coefficient (e.g., X7R or C0G). The X7R dielectric offers good capacitance stability over temperature, while C0G dielectrics provide even better stability but typically at lower capacitance values. The package size is also a key characteristic, and these capacitors come in various sizes such as 0603, 0805, or 1206.
