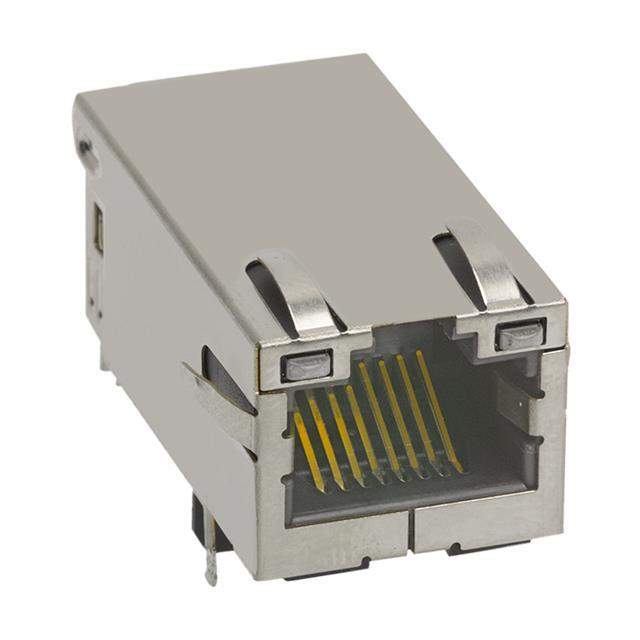

Part No 0826-1AX1-47
Manufacturer Bel Fuse Inc.
Catalog Modular Connectors
Description CONN MAGJACK 1PORT 100 BASE-T
Datasheet
0826-1AX1-47 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Bel Fuse Inc.
Packaging Tray
Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.536" (13.61mm)
LED Color Green - Yellow
Number of Cores per Jack 5
Features Board Guide
Contact Finish Gold
Temperature Range - Operating 0°C to 70°C
Contact Finish Thickness 50μin (1.27μm)
Shield Material Copper Alloy
Housing Material Polyamide (PA), Nylon
Win Source Part Number 197200-0826-1AX1-47
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0826-1AX1-47 CAD Model
