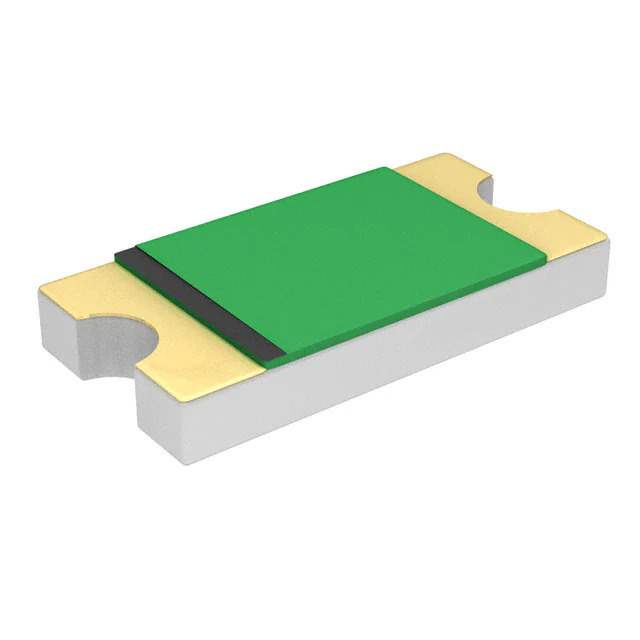

0ZCJ0005FF2E Real Image
Same model may have multiple batches, images only for reference.

0ZCJ0005FF2E

Part No 0ZCJ0005FF2E
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 50MA 1206
Datasheet
0ZCJ0005FF2E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCJ
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 60V
Current - Hold (Ih) (Max) 50 mA
Current - Trip (It) 150 mA
Current - Max 10 A
Time to Trip 1.5 s
Resistance - Initial (Ri) (Min) 3.6 Ohms
Resistance - Post Trip (R1) (Max) 50 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave
Size / Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.033" (0.85mm)
Approval Agency AEC-Q200, cURus, TUV
Standard Package 3,000 pcs
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 845118-0ZCJ0005FF2E
Ultra Librarian 3D Model Ultra Librarian 0ZCJ0005FF2E CAD Model

Description

The 845118-0ZCJ0005FF2E is a polymeric PTC resettable fuse from the 0ZCJ series by Bel Fuse Inc.

  • Series: 0ZCJ
  • Mounting Type: Surface Mount
  • Size: 0.128" L x 0.065" W (3.25mm x 1.65mm)
  • Voltage (Max): 60V
  • Current (Max): 10A
  • Trip Current: 150mA
  • Time to Trip: 1.5s
  • Operating Temperature: -40°C to 85°C
  • AEC-Q200: Compliant
  • Packaging: Tape and Reel
  • Standard Package: 3,000 pcs
  • Product Status: Active
