Same model may have multiple batches, images only for reference.

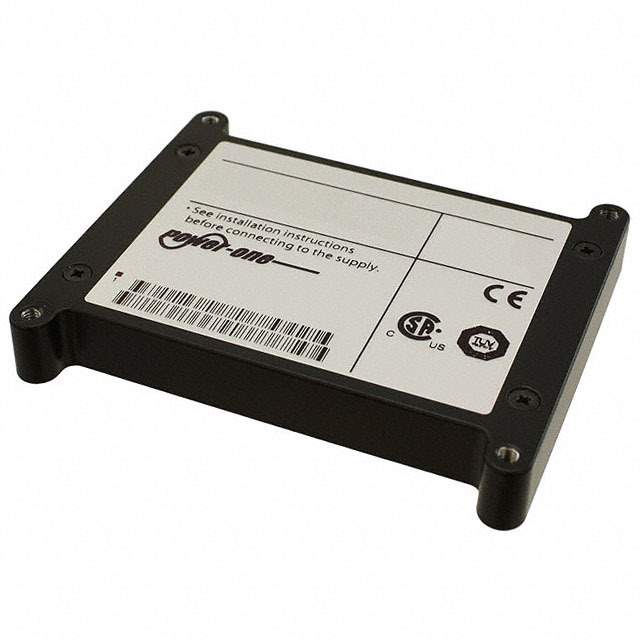

40IMX35D12D12-8G Real Image
Same model may have multiple batches, images only for reference.

40IMX35D12D12-8G

Part No 40IMX35D12D12-8G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 12V 12V 35W / Isolated Module, Conformal Coated DC DC Converter 4 Output 12V 12V 12V 700mA, 700mA, 700mA 18V - 75V Input
Datasheet
40IMX35D12D12-8G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bel Power Solutions
Series Melcher IMX35 (35W)
Package Bulk
Type Isolated Module, Conformal Coated
Number of Outputs 4
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 12V
Voltage - Output 3 12V
Current - Output (Max) 700mA, 700mA, 700mA
Power (Watts) 35 W
Voltage - Isolation 1.2 kV
Applications ITE (Commercial)
Features OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 19-DIP Module, 17 Leads
Size / Dimension 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm)
Base Product Number 40IMX35
Standard Package 24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1339345-40IMX35D12D12-8G
Ultra Librarian 3D Model Ultra Librarian 40IMX35D12D12-8G CAD Model

Description

The 40IMX35D12D12-8G is an isolated module power supply with conformal coating and overcurrent protection, over temperature protection, overvoltage protection, short circuit protection, and under voltage lockout features.

  • Application: ITE (Commercial)
  • Standard Package Quantity: 24
  • Power Output: 35W
  • Voltage Input: 18V to 75V
  • Number of Outputs: 4
  • Maximum Current Output: 700mA (each)
  • Voltage Output: 12V (all outputs)
  • Efficiency: 88%
  • Temperature Range: -40°C to 85°C
  • Dimensions: 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm)
  • Mounting Type: Through Hole
  • Package: 19-DIP Module, 17 Leads
