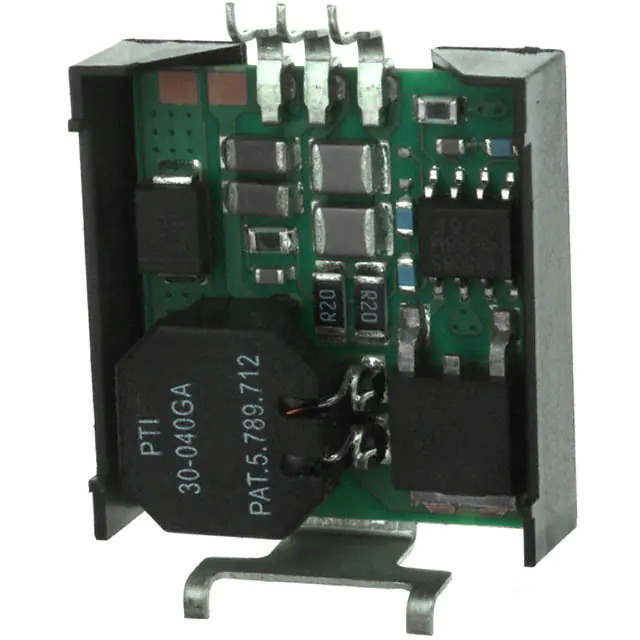

PT78NR112S Burr-Brown (TI)
Same model may have multiple batches, images only for reference.

PT78NR112S

Part No PT78NR112S
Manufacturer Burr-Brown (TI)
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER -12V / Non-Isolated PoL Module DC DC Converter 1 Output -12V 400mA 7V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Burr Brown
Series PT78NR100
Package Tray
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 7V
Voltage - Input (Max) 18V
Voltage - Output 1 -12V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 400mA
Applications ITE (Commercial)
Features OTP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Type Surface Mount
Package / Case 3-SMD Module
Size / Dimension 0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1353926-PT78NR112S
Ultra Librarian 3D Model Ultra Librarian PT78NR112S CAD Model

Description

The Burr Brown PT78NR112S is a non-isolated PoL module DC-DC converter.

  • Series: PT78NR100
  • Maximum Output Current: 400mA
  • Size: 0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
  • Mounting Type: Board Mount
  • Input Voltage Range: 7V to 18V
  • Efficiency: 75%
  • Features: OTP (over-temperature protection) and SCP (short circuit protection)
  • Application: ITE (commercial)
  • Package: Tray
  • Status: Obsolete
