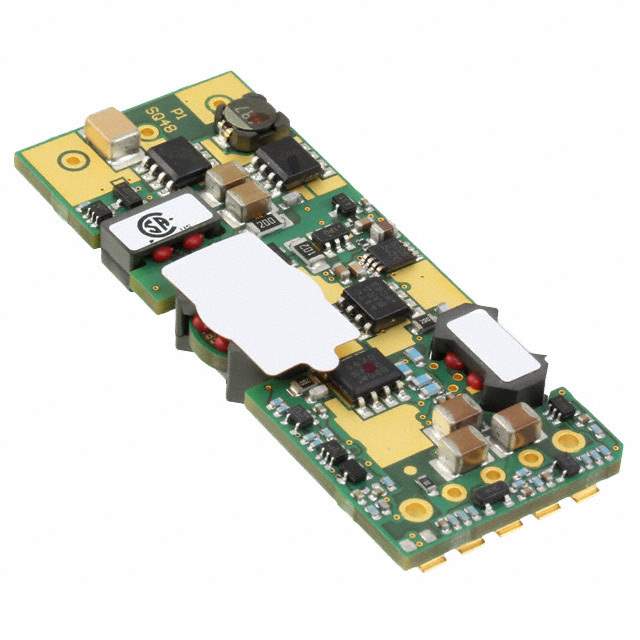

SQ48S10050-NS00 Real Image
Same model may have multiple batches, images only for reference.

SQ48S10050-NS00

Part No SQ48S10050-NS00
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 50W  /  Isolated Module DC DC Converter 1 Output 5V 10A 36V - 75V Input
Datasheet
SQ48S10050-NS00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series SemiQ™ SQ48 (50W)
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 10A
Power (Watts) 50 W
Voltage - Isolation 2 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting SMD (SMT)
Package / Case 8-SMD Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm)
Control Features Enable, Active Low
Other Names 2266-SQ48S10050-NS00,-SQ48S10050-NS00
Standard Package 200
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237697-SQ48S10050-NS00
Ultra Librarian 3D Model Ultra Librarian SQ48S10050-NS00 CAD Model

Description

The Bel Power Solutions SemiQ SQ48 (50W) is a highly efficient and reliable isolated module that is designed to meet the needs of various industrial applications.

  • Features: Remote on/off, as well as OCP, OTP, OVP, and UVLO
  • Popularity: High
  • Efficiency: 87%
  • Outputs: Single output
  • Maximum Current Output: 10A
  • Output Voltage: 5V
  • Voltage Isolation: 2kV
  • Family: SRDB-10E
  • Manufacturer: Bel Power Solutions
