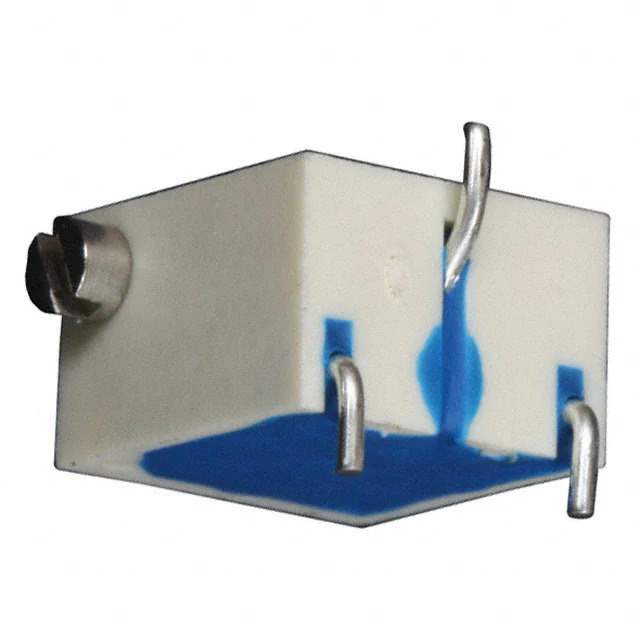

Same model may have multiple batches, images only for reference.

3269X-1-503

Name: 3269X-1-503
Brand: Bourns Inc.
SKU: 906561
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3269X-1-503
Manufacturer	Bourns Inc.
Catalog	Trimmer Potentiometers
Description	TRIMMER 50K OHM 0.25W GW SIDE / 50 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
Datasheet	3269X-1-503 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3269 - Sealed
Package	Tube
Product Status	Active
Resistance	50 kOhms
Power (Watts)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	12
Adjustment Type	Side Adjustment
Resistive Material	Cermet
Mounting Type	Surface Mount
Termination Style	Gull Wing
Size / Dimension	Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number	3269X
Standard Package	100 pcs
MSL Level	2 (1 Year)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
California Prop 65	Warning Information
Win Source Part Number	906561-3269X-1-503
Ultra Librarian 3D Model	Ultra Librarian 3269X-1-503 CAD Model

Alternative Products

Description

The Trimpot® 3269 is a sealed potentiometer with a gull wing termination style.

Function: variable resistor used for precise voltage or current adjustment in electronic circuits
Size: 0.250" x 0.170" face (6.35mm x 4.32mm)
Power Rating: 0.25W (1/4W)
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Turns: 12 turns
Adjustment: side adjustment
Resistive Material: cermet
Resistance: 50 kOhms
Mounting: surface mountable
Package: tube package with 100 pieces
Status: active product
Manufacturer: Bourns Inc.
Category: potentiometers, variable resistors - trimmer potentiometers
