Same model may have multiple batches, images only for reference.

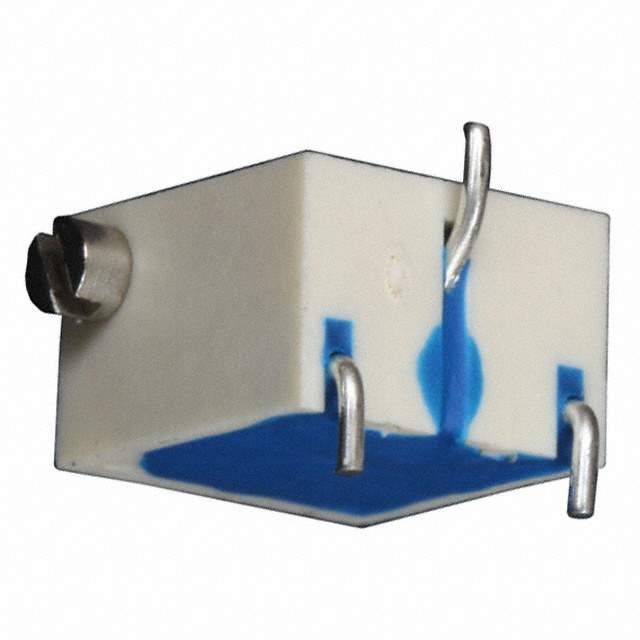

3269X-1-501 Real Image
Same model may have multiple batches, images only for reference.

3269X-1-501

Part No 3269X-1-501
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500 OHM 0.25W GW SIDE / 500 Ohms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
Datasheet
3269X-1-501 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer Bourns Inc.
Packaging Tube
Resistance 500 Ohms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Surface Mount
Termination Style Gull Wing
Size / Dimension Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number 3269X
RoHS Status RoHS non-compliant
MSL Level 2 (1 Year)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Standard Package 100
Win Source Part Number 1325939-3269X-1-501
Ultra Librarian 3D Model Ultra Librarian 3269X-1-501 CAD Model

Description

The 3269X-1-501 is a surface mount, side adjustment trimmer potentiometer manufactured by Bourns Inc.

  • Mounting Type: Surface Mount
  • Adjustment Type: Side
  • Shape: Rectangular
  • Face Size: 0.250" x 0.170"
  • Resistance: 500 Ohms
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W (1/4W)
  • Number of Turns: 12
  • Resistive Material: Cermet
  • Termination Style: Gull Wing
  • Package: Tube
  • RoHS: Non-Compliant
