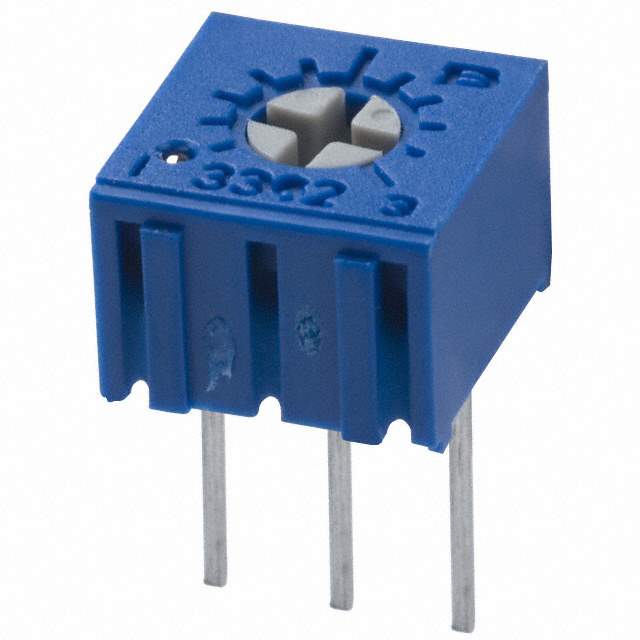

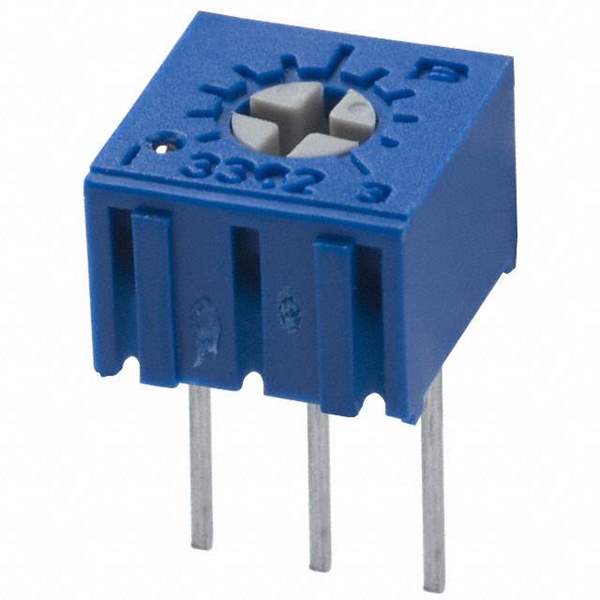

3362U-1-105RLF Real Image
Same model may have multiple batches, images only for reference.

3362U-1-105RLF

Part No 3362U-1-105RLF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.5W PC PIN TOP / 1 MOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet
3362U-1-105RLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 1 mOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.275" x 0.260" Face (6.99mm x 6.60mm)
Base Product Number 3362U
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Standard Package 750
Win Source Part Number 1329662-3362U-1-105RLF
Ultra Librarian 3D Model Ultra Librarian 3362U-1-105RLF CAD Model

Description

The Bourns Inc. 3362U-1-105RLF is a rectangular, through-hole trimmer potentiometer with a top adjustment type.

  • Resistive Material: Cermet
  • Resistance: 1 mOhms
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.5W or 1/2W
  • Turns: One
  • Packaging: Reel
  • Standard Packages: 750
  • Size or Dimension: 0.275” x 0.260” (6.99mm x 6.60mm)
  • ROHS3 Compliant: Yes
  • REACH Affected: Yes
