Same model may have multiple batches, images only for reference.

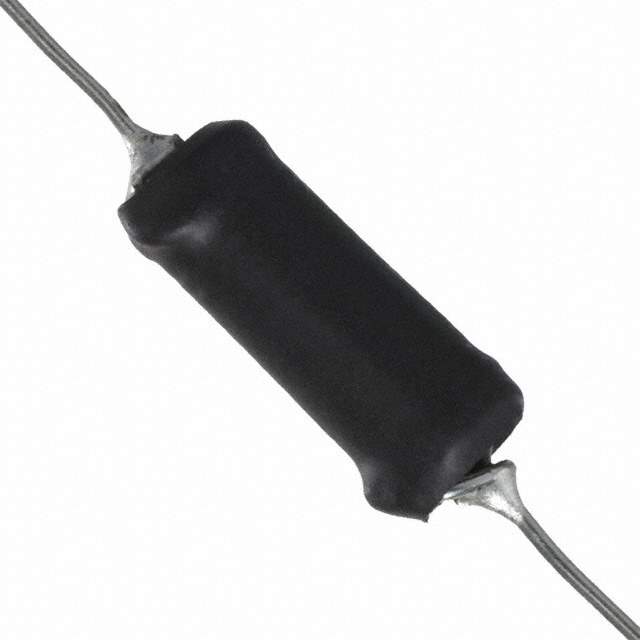

5800-470-RC Real Image
Same model may have multiple batches, images only for reference.

5800-470-RC

Part No 5800-470-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 1A 136 MOHM TH / 47 µH Unshielded Drum Core, Wirewound Inductor 1 A 136mOhm Max Axial
Datasheet
5800-470-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series 5800
Package Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.7A
Shielding Unshielded
DC Resistance (DCR) 136mOhm Max
Temperature Range - Operating -55°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.275" Dia x 0.700" L (6.99mm x 17.78mm)
Base Product Number 5800
Standard Package 864
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
California Prop 65 Warning Information
Win Source Part Number 1339800-5800-470-RC
Ultra Librarian 3D Model Ultra Librarian 5800-470-RC CAD Model

Description

The 5800-470-RC is a fixed inductor from Bourns Inc.

  • Inductance: 47 µH
  • Core Material: Ferrite
  • Size / Dimension: 0.275" Dia x 0.700" L (6.99mm x 17.78mm)
  • Mounting Type: Through Hole
  • Tolerance: ±10%
  • DCR: 136mOhm (Max)
  • Current Rating: 1A
  • Packaging: Axial
  • Temperature Range: -55°C to 105°C
