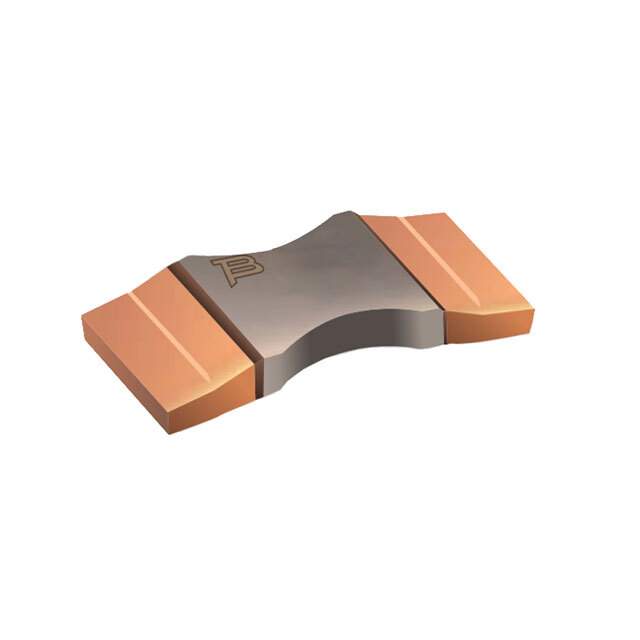

CSS2H-2512R-L300F Real Image
Same model may have multiple batches, images only for reference.

CSS2H-2512R-L300F

Part No CSS2H-2512R-L300F
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES 300UOHM 1% 6W 2512 / 0.3 mOhms ±1% 6W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Element
Datasheet
CSS2H-2512R-L300F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CSS2H-2512
Package Tape & Reel
Resistance 0.3 mOhms
Tolerance ±1%
Power (Watts) 6W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.120" W (6.35mm x 3.05mm)
Height - Seated (Max) 0.055" (1.40mm)
Number of Terminations 2
Base Product Number CSS2H
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
California Prop 65 Warning Information
Win Source Part Number 1350264-CSS2H-2512R-L300F
Ultra Librarian 3D Model Ultra Librarian CSS2H-2512R-L300F CAD Model

Description

The Bourns Inc. 1350264-CSS2H-2512R-L300F is a chip resistor that belongs to the CSS2H-2512 series.

  • Type: Chip Resistor
  • Series: CSS2H-2512
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Suitable For: Automotive AEC-Q200 and Current Sense Applications
  • Size/Dimension: 0.250" L x 0.120" W (6.35mm x 3.05mm)
  • Height: 0.055" (1.40mm)
  • Standard Package: 3,000 pieces
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Features: Reliable and Durable
  • Application: Used in a Variety of Applications
