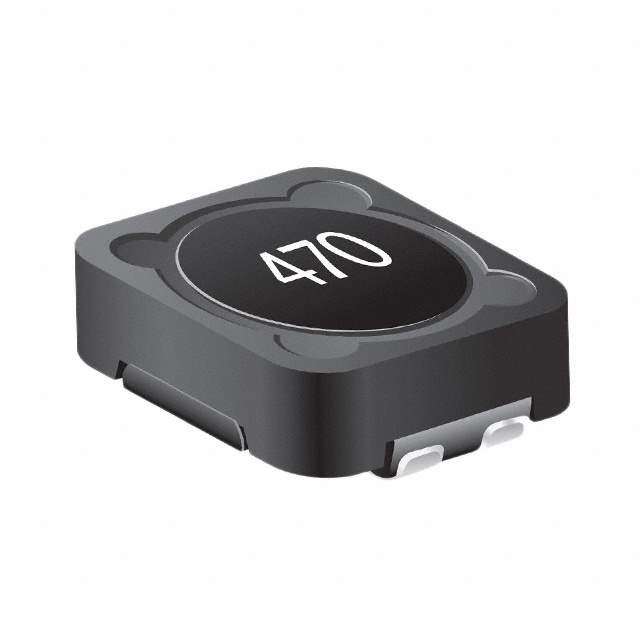

SRF0703A-220M Real Image
Same model may have multiple batches, images only for reference.

SRF0703A-220M

Part No SRF0703A-220M
Manufacturer Bourns Inc.
Catalog Arrays, Signal Transformers
Datasheet
SRF0703A-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Bourns Inc.
Series SRF0703A
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 22 µH
Inductance - Connected In Series 89.5 µH
Tolerance ±20%
Current Rating - Parallel 1.62 A
Current Rating - Series 811 mA
Current Saturation - Parallel 1.67 A
Current Saturation - Series 830 mA
DC Resistance (DCR) - Parallel 150mOhm Max
DC Resistance (DCR) - Series 620mOhm Max
Shielding Shielded
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height 0.142" (3.60mm)
Base Product Number SRF0703A
Other Names SRF0703A-220MTR,SRF0703A-220MCT,SRF0703A-220MDKR
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1275003-SRF0703A-220M
Ultra Librarian 3D Model Ultra Librarian SRF0703A-220M CAD Model

Description

The SRF0703A-220M is a shielded inductor from Bourns Inc.

  • Package: Tape & Reel
  • Height: 0.142" (3.60mm)
  • Rating: AEC-Q200
  • Tolerance: ±20%
  • Series: SRF0703A
  • Mounting: SMD (SMT)
  • Number of Coils: 2
  • Inductance (Series): 89.5 µH
  • Inductance (Parallel): 22 µH
  • Current Rating (Parallel): 1.62 A
  • Current Rating (Series): 811 mA
  • Current Saturation (Parallel): 1.67 A
  • Current Saturation (Series): 830 mA
  • DC Resistance (DCR) (Parallel): 150mOhm Max
  • DC Resistance (DCR) (Series): 620mOhm Max
  • Dimension: 0.299" L x 0.299" W (7.60mm x 7.60mm)
  • Temperature Range: -40°C ~ 125°C
