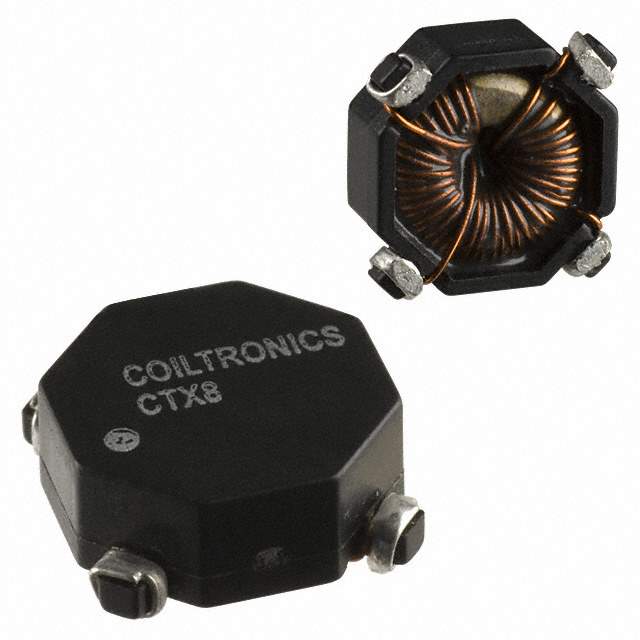

CTX8-4P-R Real Image
Same model may have multiple batches, images only for reference.

CTX8-4P-R

Part No CTX8-4P-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 7.81UH SMD
Datasheet
CTX8-4P-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 31.23μH
Inductance - Connected In Parallel 7.81μH
Tolerance ±20%
Current Rating - Parallel 3A
Current Rating - Series 1.5A
DC Resistance (DCR) - Parallel 33 mOhm Max
DC Resistance (DCR) - Series 131 mOhm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.250" (6.35mm)
Win Source Part Number 1030813-CTX8-4P-R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CTX8-4P-R CAD Model

Description

The Eaton 1030813-CTX8-4P-R is a surface mount inductor that is designed for use in various electronic devices.

  • Height: 0.250" (6.35mm)
  • Connection: Parallel
  • Inductance: 7.81μH
  • Current Rating (Parallel): 3A
  • Current Rating (Series): 1.5A
  • Tolerance: ±20%
  • DC Resistance (Parallel): 33 mOhm Max
  • DC Resistance (Series): 131 mOhm Max
  • Supply and Demand Status: Sufficient
