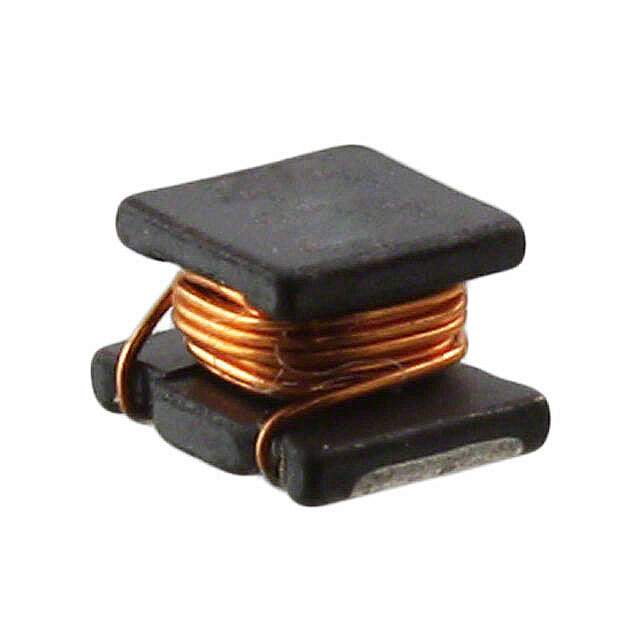

SRN6028-330M Real Image
Same model may have multiple batches, images only for reference.

SRN6028-330M

Part No SRN6028-330M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 33UH 1.1A 264 MOHM SMD / 33 µH Semi-Shielded Drum Core, Wirewound Inductor 1.1 A 264mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.1A
Shielding Semi-Shielded
DC Resistance (DCR) 264mOhm Max
Q @ Freq 11 @ 2.52MHz
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.110" (2.80mm)
Base Product Number SRN6028
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRN6028-330MTR,SRN6028-330MCT,SRN6028-330MDKR
Standard Package 1,000
Win Source Part Number 1327903-SRN6028-330M
Ultra Librarian 3D Model Ultra Librarian SRN6028-330M CAD Model

Description

The SRN6028-330M is a semi-shielded, drum core, wirewound inductor from Bourns Inc.

  • Inductance: 33 µH
  • Tolerance: ±20%
  • Current: 1.1 A
  • DC Resistance: 264 mOhm max
  • Operating Temperature: -40°C to 125°C
  • ROHS3 Compliant: Yes
  • Mounting: Surface-mounted
  • Package Dimension: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Frequency Self-Resonant: 10 MHz
  • Core Material: Ferrite
