Same model may have multiple batches, images only for reference.

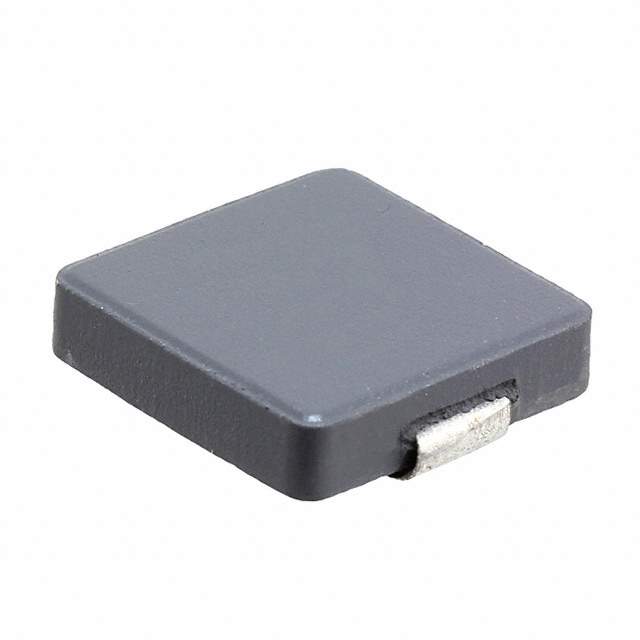

SRP1238A-2R2M Real Image
Same model may have multiple batches, images only for reference.

SRP1238A-2R2M

Part No SRP1238A-2R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1238A-2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1238A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 16 A
Current - Saturation (Isat) 29A
Shielding Shielded
DC Resistance (DCR) 8mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 25MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SRP1238A
Other Names SRP1238A-2R2MCT,SRP1238A-2R2MDKR,SRP1238A-2R2MTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274089-SRP1238A-2R2M
Ultra Librarian 3D Model Ultra Librarian SRP1238A-2R2M CAD Model

Description

The SRP1238A series inductor is a high-quality component designed for use in a range of electronic devices.

  • Inductance: 2.2 µH
  • Current Rating: 16 A
  • Shielded Design: Yes
  • Rated: AEC-Q200
  • Manufacturer: Bourns Inc.
This inductor is ideal for use in power supplies and other high-current applications. The shielded design ensures that this component is highly resistant to interference, making it suitable for use in sensitive electronic circuits. The AEC-Q200 rating ensures that this component meets the highest automotive quality standards.
