Same model may have multiple batches, images only for reference.

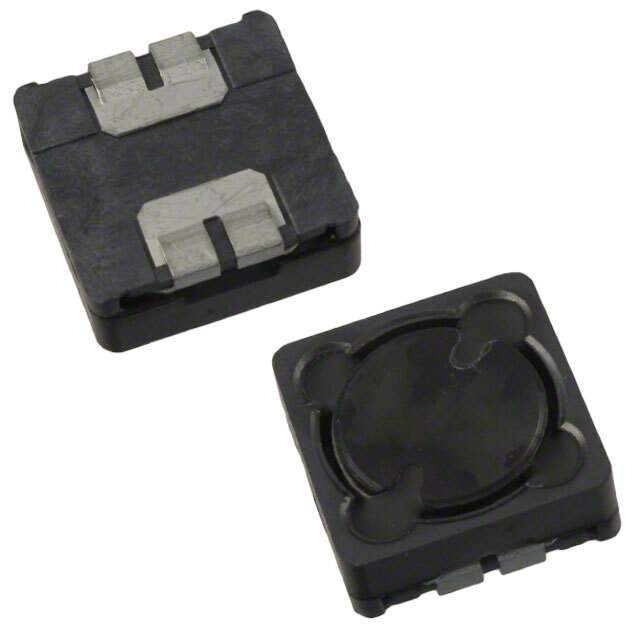

SRR1205-120ML Real Image
Same model may have multiple batches, images only for reference.

SRR1205-120ML

Part No SRR1205-120ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1205-120ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1205
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 µH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 5.6A
Shielding Shielded
DC Resistance (DCR) 65mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.217" (5.50mm)
Base Product Number SRR1205
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273543-SRR1205-120ML
Ultra Librarian 3D Model Ultra Librarian SRR1205-120ML CAD Model

Description

The SRR1205 series inductor is a drum core, wirewound type of inductor with a shielding feature.

  • Inductance: 12 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 20 @ 2.52MHz
  • Frequency Self-Resonant: 13MHz
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 65mOhm Max
  • Current Rating (Amps): 2.8A
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Supplier: Bourns Inc.
  • Base Product Number: SRR1205
  • Applications: Power supplies, DC-DC converters, and filters
