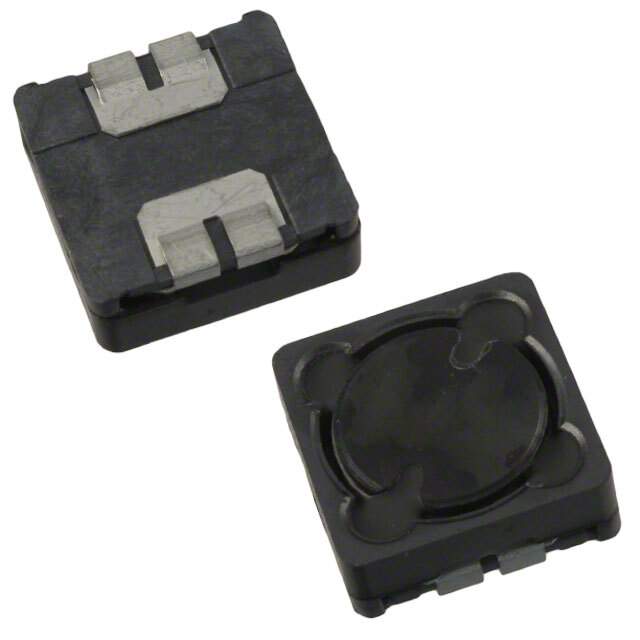

SRR1205-150ML Real Image
Same model may have multiple batches, images only for reference.

SRR1205-150ML

Part No SRR1205-150ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1205-150ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1205
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 2.7 A
Current - Saturation (Isat) 5.3A
Shielding Shielded
DC Resistance (DCR) 70mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.217" (5.50mm)
Base Product Number SRR1205
Other Names SRR1205-150ML,SRR1205-150MLTR,SRR1205-150MLCT,SRR1205-150MLDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273548-SRR1205-150ML
Ultra Librarian 3D Model Ultra Librarian SRR1205-150ML CAD Model

Description

The SRR1205-150ML is an electronic component manufactured by Bourns Inc.

  • Type: Fixed Inductor
  • Series: SRR1205
  • Core: Drum core, wirewound
  • Package: Tape and reel
  • Shielded: Yes
  • Inductance: 15μH
  • Height: 0.217" (5.50mm)
  • Standard Package: 600
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 20 @ 2.52MHz
  • Frequency - Self-Resonant: 11MHz
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 70mOhm Max
  • Supplier Device Package: Not specified
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • MSL Level: 1 (Unlimited)
  • Current Rating: 2.7 A
  • Inductance Frequency - Test: 1 kHz
  • REACH: REACH unaffected
  • HTSUS: 8504.50.4000
  • Current Saturation (Isat): 5.3A
