Same model may have multiple batches, images only for reference.

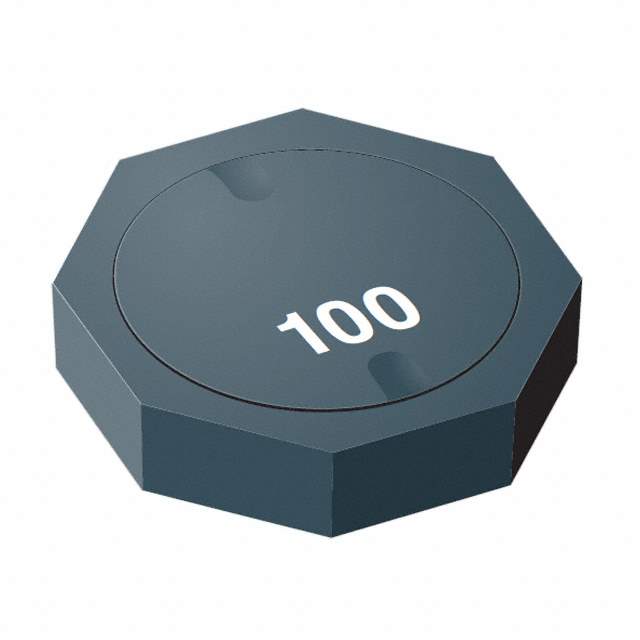

SRU1028A-8R2Y Real Image
Same model may have multiple batches, images only for reference.

SRU1028A-8R2Y

Part No SRU1028A-8R2Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 8.2UH 3.3A 37 MOHM SMD / 8.2 µH Shielded Drum Core, Wirewound Inductor 3.3 A 37mOhm Max Nonstandard
Datasheet
SRU1028A-8R2Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 8.2 µH
Tolerance ±30%
Current Rating (Amps) 3.3 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 37mOhm Max
Q @ Freq 12 @ 7.96MHz
Frequency - Self Resonant 28MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.122" (3.10mm)
Base Product Number SRU1028A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRU1028A-8R2Y-ND,SRU1028A-8R2YTR,SRU1028A-8R2YCT,SRU1028A-8R2YDKR
Standard Package 1,000
Win Source Part Number 1327969-SRU1028A-8R2Y
Ultra Librarian 3D Model Ultra Librarian SRU1028A-8R2Y CAD Model

Description

The SRU1028A-8R2Y from Bourns Inc. is a shielded drum core, wirewound type of fixed inductor that belongs to the inductors, coils, chokes category.

  • Packaging: Reel - TR
  • Size/Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Inductance: 8.2 µH
  • Height Seated (max): 0.122" (3.10mm)
  • Package: Standard package is 1,000
  • Mounting: Surface Mount
  • Tolerance: ±30%
  • Material Core: Ferrite
  • Q @ Freq: 12 @ 7.96MHz
  • Frequency - Self-Resonant: 28MHz
  • DC Resistance (DCR): 37mOhm Max
  • Temperature Range: -40°C to 125°C
  • Case/Package: Nonstandard
  • AEC-Q200: Rated
  • Current Rating (amps): 3.3 A
  • Inductance Frequency - Test: 100 kHz
  • REACH: Unaffected
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
